Workswell

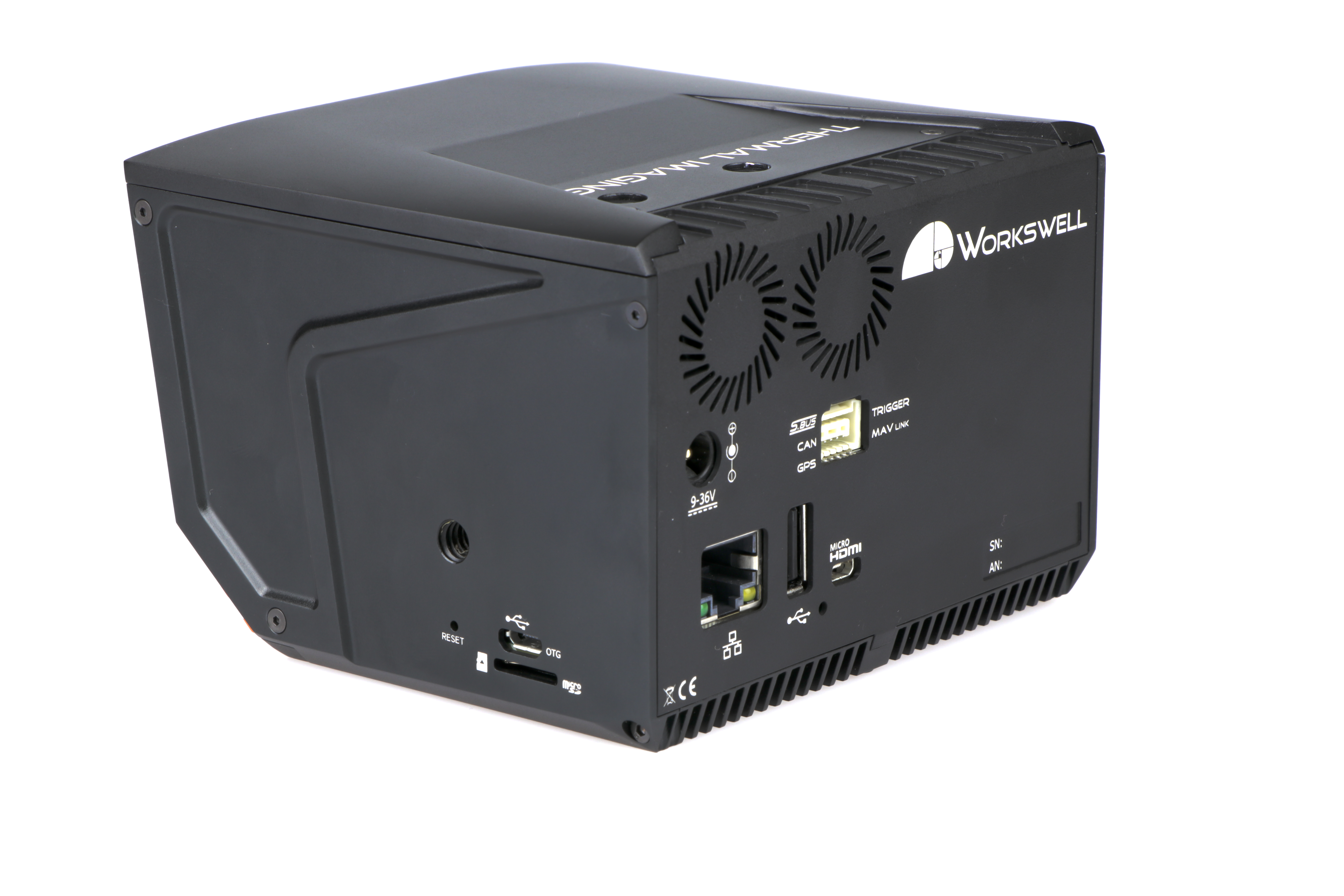

WIRIS SecuritySearch and Rescue Drone Thermal Camera
Model No :
WIRIS Security
Part Code :
WSE-336-S/F(9Hz, 30Hz)WSE-640-S (9Hz)

Overview

UAV Payloads: Workswell WIRIS Sercurity soution is used for security,search and rescue operation.WIRIS Security offers a high resolution thermal camera, 30x optical zoom in the RGB spectrum and excellent temperature sensitivity.Its LWIR thermal camera is designed for use with drones WIRIS security is equipped with WIRIS OS operating system which offers a range of functions specially desiged for security and search operation.

Features
-­800px Infrared UAV camera
-High sensitivity Night vision modes in visual Full HD camera
-Operating onboard system
-30x Optical Antivibration zoom

Major Applications
-Security and Firefighting applications
Technical Specifications
-IR camera resolution: 800 x 600 pixels
-Scene range: -20 °C to +150 °C
-Temperature sensitivity: Extra sensitivity of 0.04 °C (40 mK)
-Frame rate: 25 Hz or 9 Hz
-Digital Visual Camera Resolution: 1920 x 1080 pixels (Full HD)
-Spectral range / detector: 7.5 – 13.5 µm / Uncooled VOx microbolometer

General Specifications
-Input supply voltage: 9-36 VDC, Coaxial 2.1 x 5.5 mm, outer shell - GND
-Power dissipation (avg.): 19 W
-Weight: < 720 grams
-Dimensions (L x W x H):110 mm x 75 mm x 102 mm
-Operating temperature range: -15 °C to +50 °C
-Storage temperature range:-30 °C to +60 °C
