Workswell

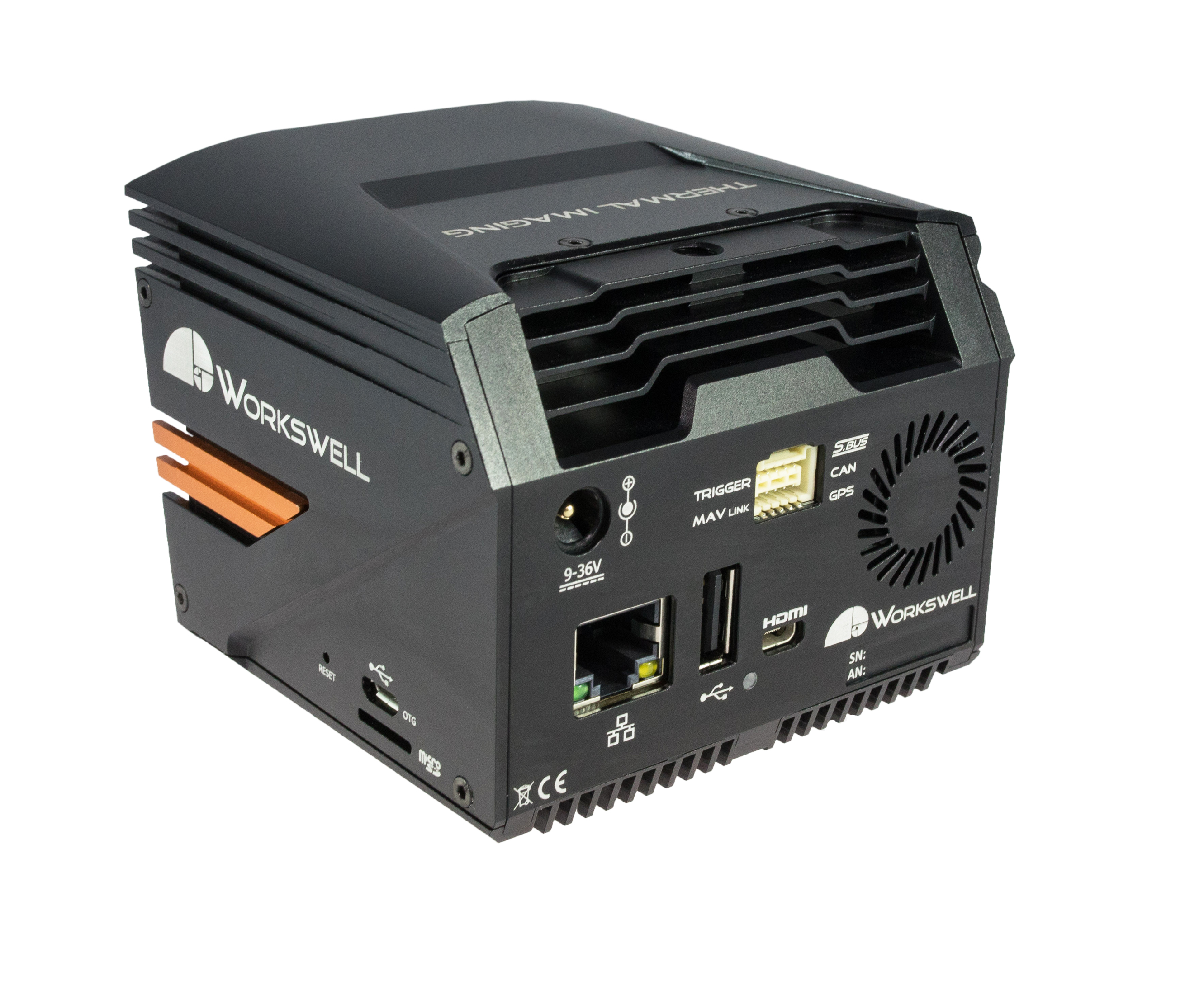

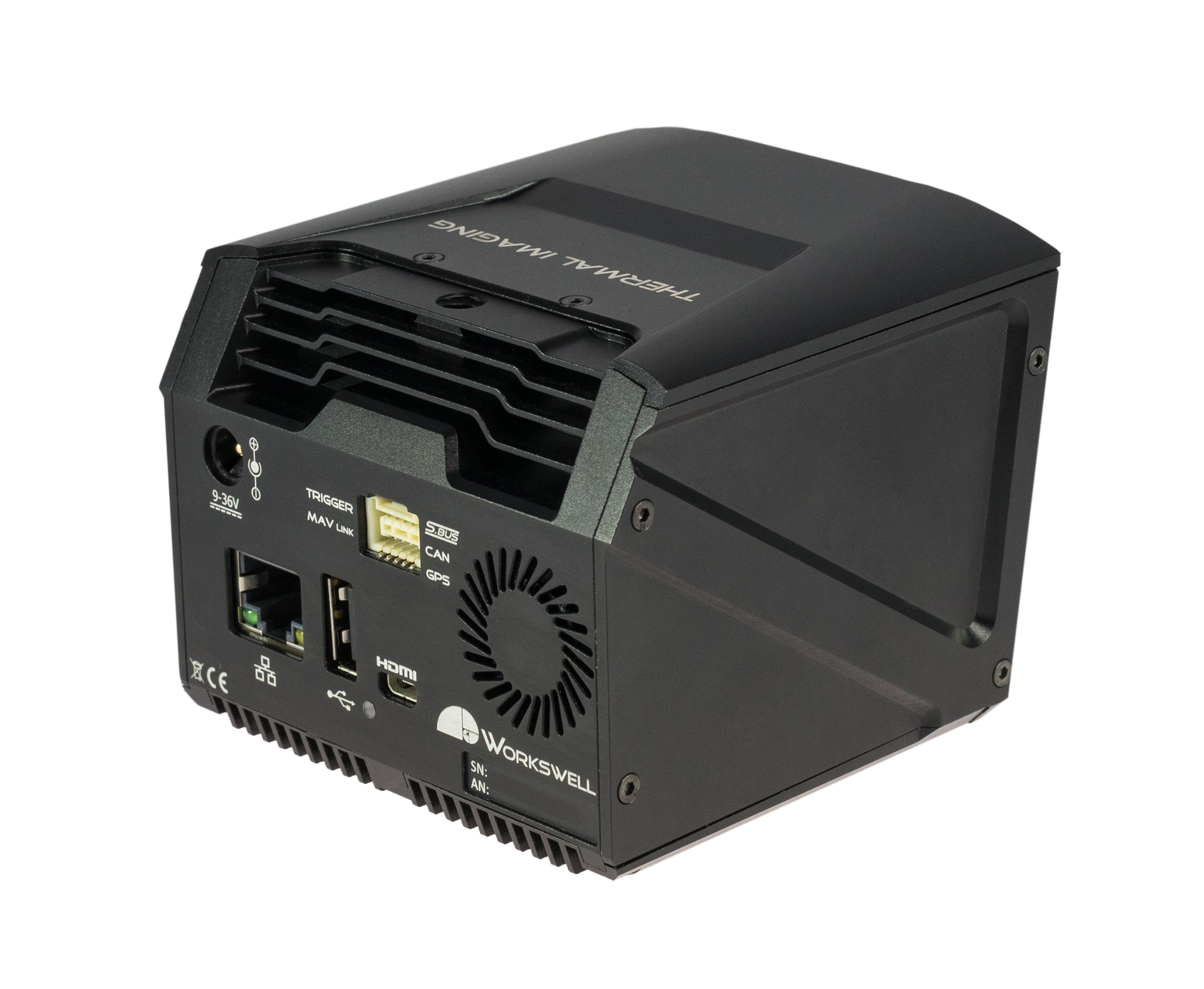

WIRIS PRO Radiometric Inspection Thermal Camera

Model No :

WIRIS Pro

Part Code :

WWP-US-640-SNL/FNL-256 (9Hz/30Hz)

Overview

UAV Payloads: Workswell WIRIS Pro is a specially designed thermodiagnostic device.It is a fully radiometric thermal camera, specially designed for use with unmanned aerial vehicles(UAVs) or drones.WIRIS Pro thermal camera is equipped with an LWIR microbolometric sensor with 640×512 px resolution.

Features

-Broad Temperature Range
-Precise Laboratory Calibration
-Thermal Frame
-Highest Sensor resolution on the Market
-10x optical RGB zoom
-Interchangeable Lenses

Major Applications

-Power Engineering
-Photovoltaic Power Plants
-Fakel Burner Inspection
-Pipeline Inspection
-Green Roofs and facades inspection
-Drone based 3D thermal modeling

Technical Specifications

-IR camera resolution: 640 x 512 pixels
-IR Super Resolution Mode:1 266 x 1 010 pixels
(improvement of native resolution up to 1.3 Mpx)
-Temperature sensitivity: Standard 0.05 °C (50 mK) or
optional 0.03 °C (30 mK)
-Accuracy: ±2 % or ±2 °C
-Frame rate: 30 Hz or 9 Hz
-Digital Visual Camera Resolution: 1920 x 1080 pixels (Full HD)
-IR Digital zoom: 1 – 12x continuous
-FPA active sensor size: 1.088 x 0.8705 cm

General Specifications

-Temperature ranges:
-25 °C to +150 °C (-13 °F to 302 °F)
-40 °C to +550 °C (-40 °F to 1 022 °F)
-optional temperature range 50 °C to 1 000 °C (122 °F to 1 832 °F)
-optional temperature range 400 °C to 1 500 °C (752 °F to 2 732 °F)
-Spectral range / detector: 7.5 – 13.5 µm / Uncooled VOx microbolometer
-Optical zoom: 10x optical zoom with vibration compensation
