Workswell

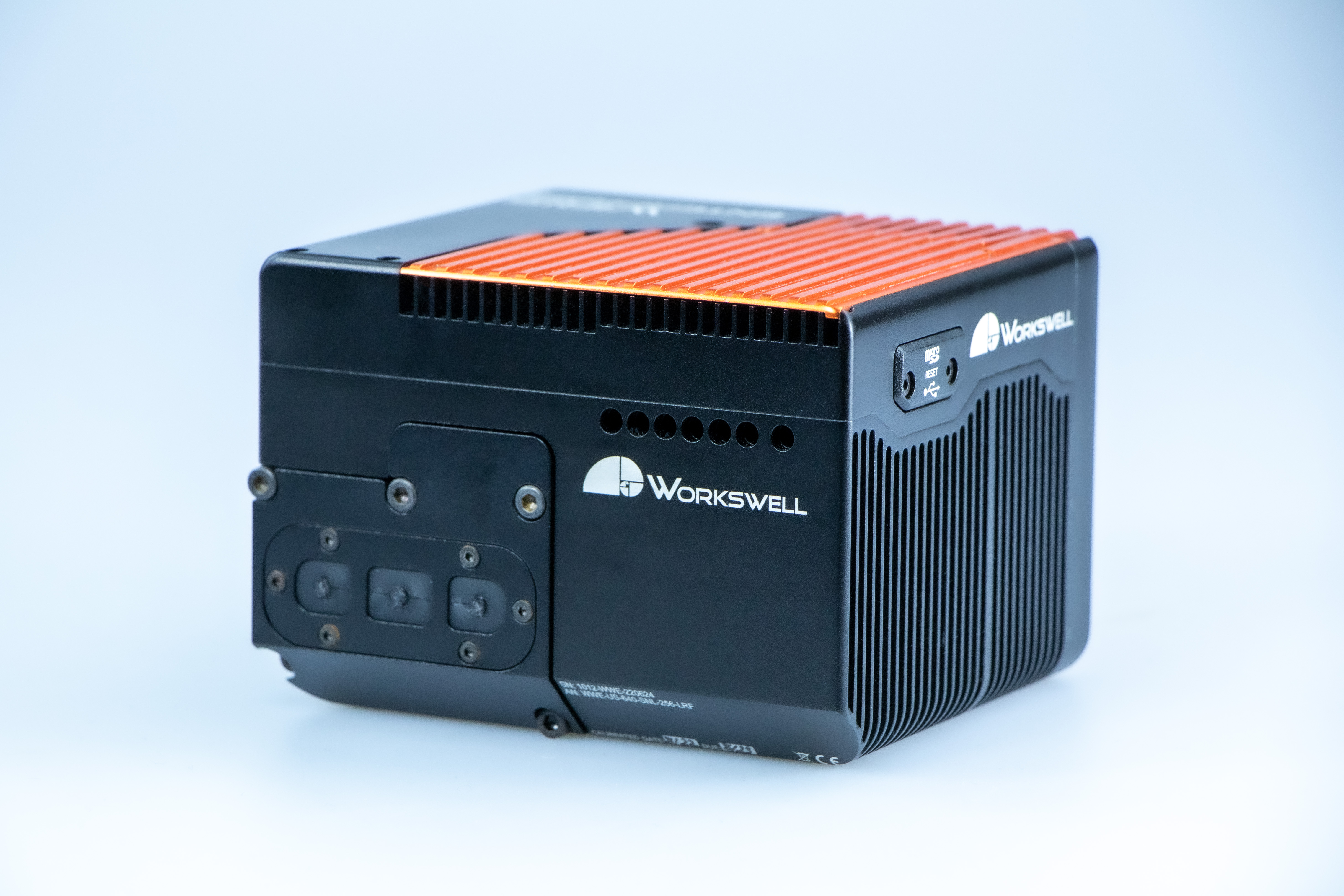

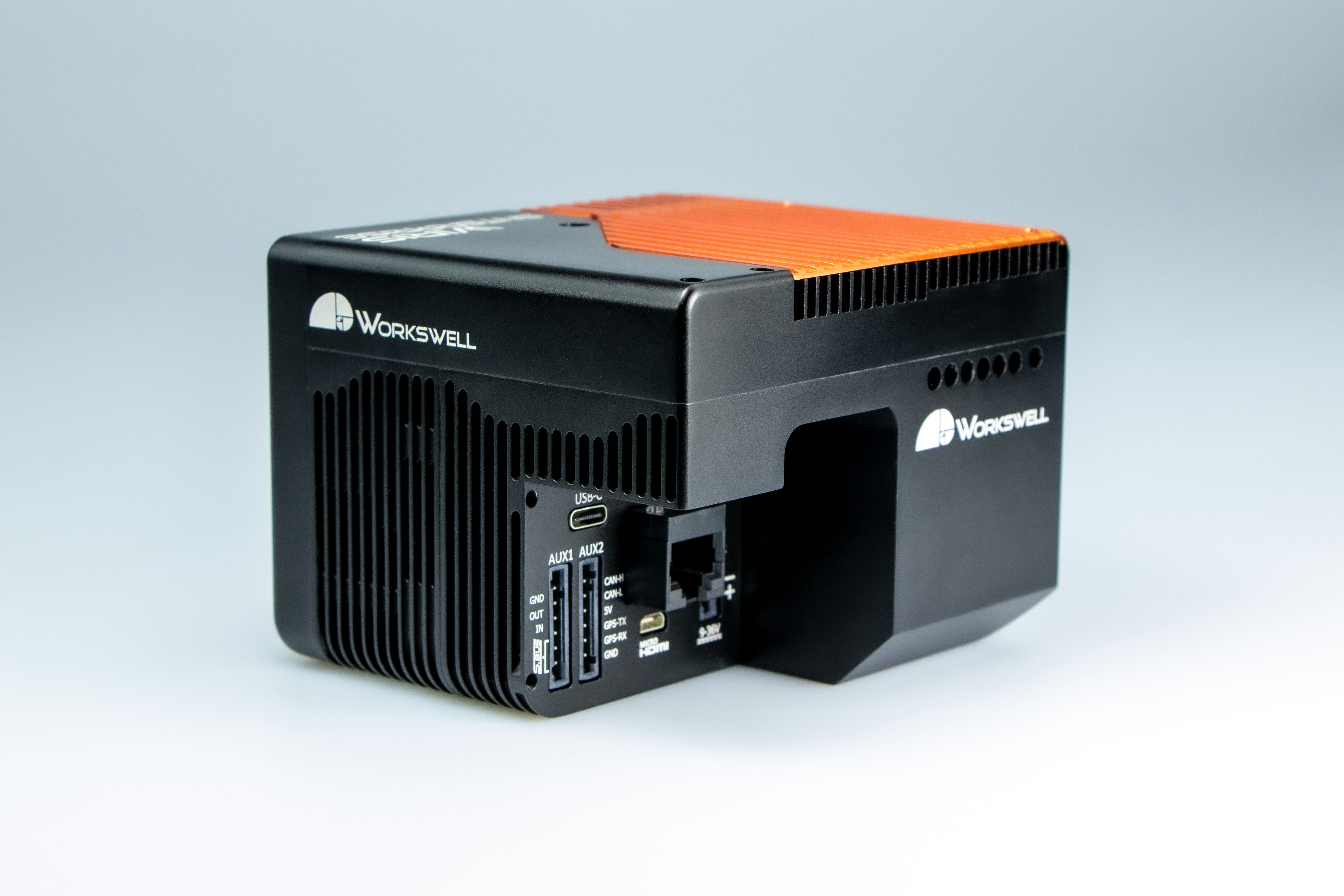

WIRIS Enterprise Advanced Multi-Sensor Camera UAV/UGV Payload

Model No :

WIRIS Enterprise

Part Code :

WWE-US-640-SNL/FNL-256-LRF (9Hz/30Hz)

Overview

UAV Payloads: Workswell WIRIS Enterprise is a multi sensor camera specifically designed for use with unmanned aerial vehicles(UAV/UGV) or drones. WIRIS Enterprise has been designes as an inspection camera.Industrial inspections often carried out in demanding environments so there is a high risk that inspection cameras will be damaged during therir normal use. Thats why WIRIS Enterprise comes with IP 66 rating Complete protection from dust, oil, and other non-corrosive material also waterproof against rain, snow even from powerful jets of water.

Features

-High Temperature Range Up to 1500°C
-Thermal Camera resolution 1266x1010
-Precise Laboratory Calibration ±2 % or ±2 °C
-30x optical RGB zoom with Night Vision Mode
-Range Finder upto 1500M detection
-Visual Camera Resolution 16MPX

Major Applications

-Thermal imaging inspections
-Security applications
-Firefighting, geological
-Archaeological and forestry studies
-Ecological and environmental research

Technical Specifications

-IR camera resolution:640 x 512 pixels
-Temperature sensitivity:
Standard 0.05 °C (50 mK) or optional 0.03 °C (30 mK)
-IR Super Resolution Mode:1266 x 1010 pixels
-Accuracy: ±2 % or ±2 °C
-Frame rate: 30 Hz or < 9 Hz
-Spectral range / detector: 7.5 – 13.5 µm / Uncooled VOx microbolometer

General Specifications

-Input supply voltage: 9 – 36 VDC, 2-pin HARTING connector
-Power dissipation: 18W average (21W peak) consumption
-Weight: < 680 grams (1.49 lb) including Rangefinder, without IP protection cap
-Dimensions (L x W x H): 76 mm x 107 mm x 102 mm (2.99 in x 4.21 in x 4.01 in)
-Operating temperature range -15 °C to +50 °C (5 °F to 122 °F)
-Storage temperature range -30 °C to +60 °C (-22 °F to 140 °F)

Catalogue

https://www.elmack.co.in/images/downloads/Catalogue/wiris enterprise.pdf

Manufacturing details:

https://workswell-thermal-camera.com/wiris-enterprise/
