Workswell

Thermoinspector Mobile Thermal Inspection System

Model No :

Workswell Thermoinspector Mobile

Part Code :

WTI-TPC-002

Overview

Automation: ThermoInspector Mobile is automatic inspection system for thermal monitoring, analysing and evaluation. It can measure , record and evaluate thermal information in real time and cooperate with exisiting machine control systems and PLCs. ThermoInspector mobile is used for welding, heating, cooling, soldering and other thermal processes in plastic,metal,biological, chemical and another manufacturing industry.

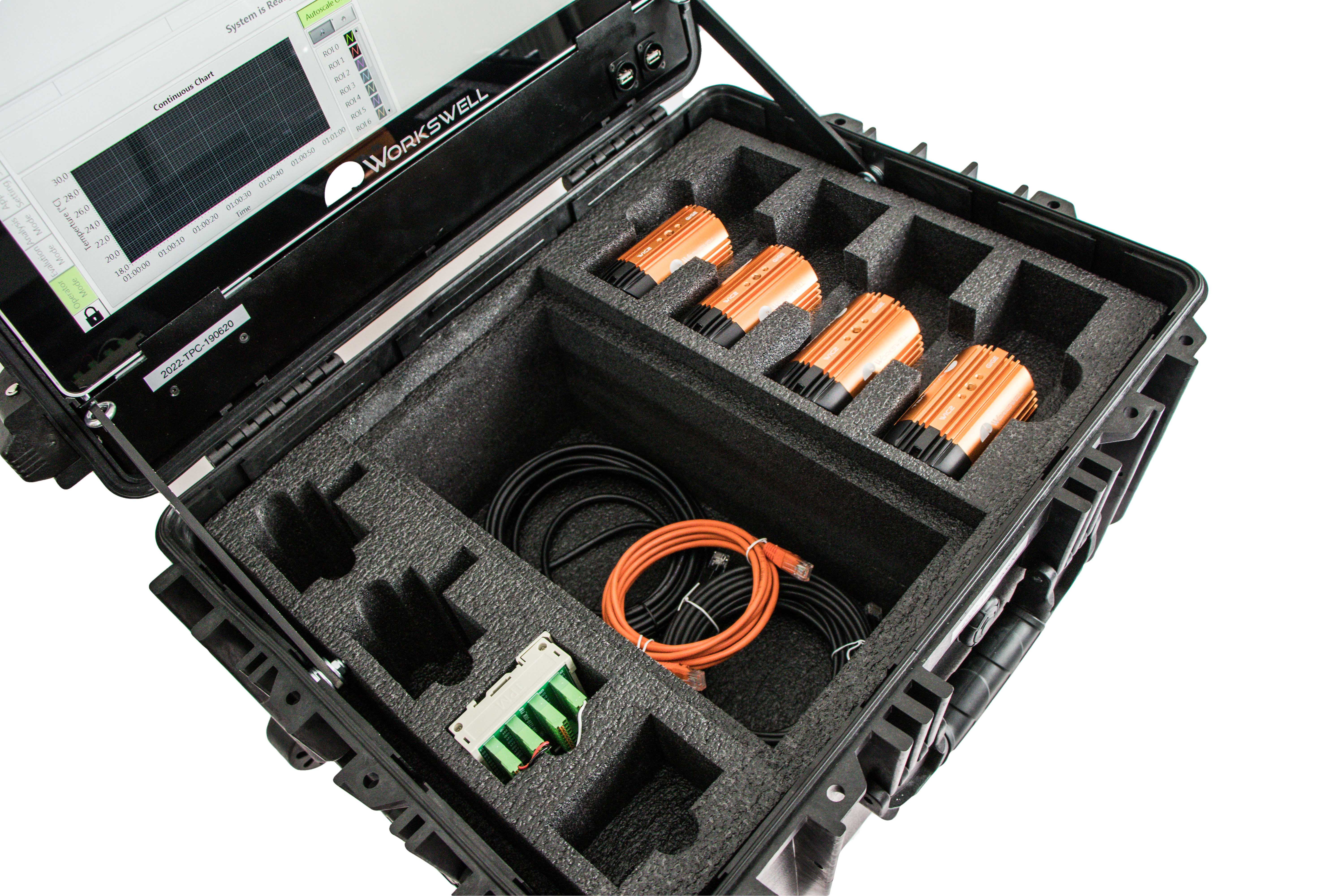

Each ThermoInspector Mobile package supports multi-camera radiometric streaming, camera control, communication with PLC and various measurement tools.

Features

-Resolutions 640 px and 336 px
-Plug and Play installation and easy setup with PLC

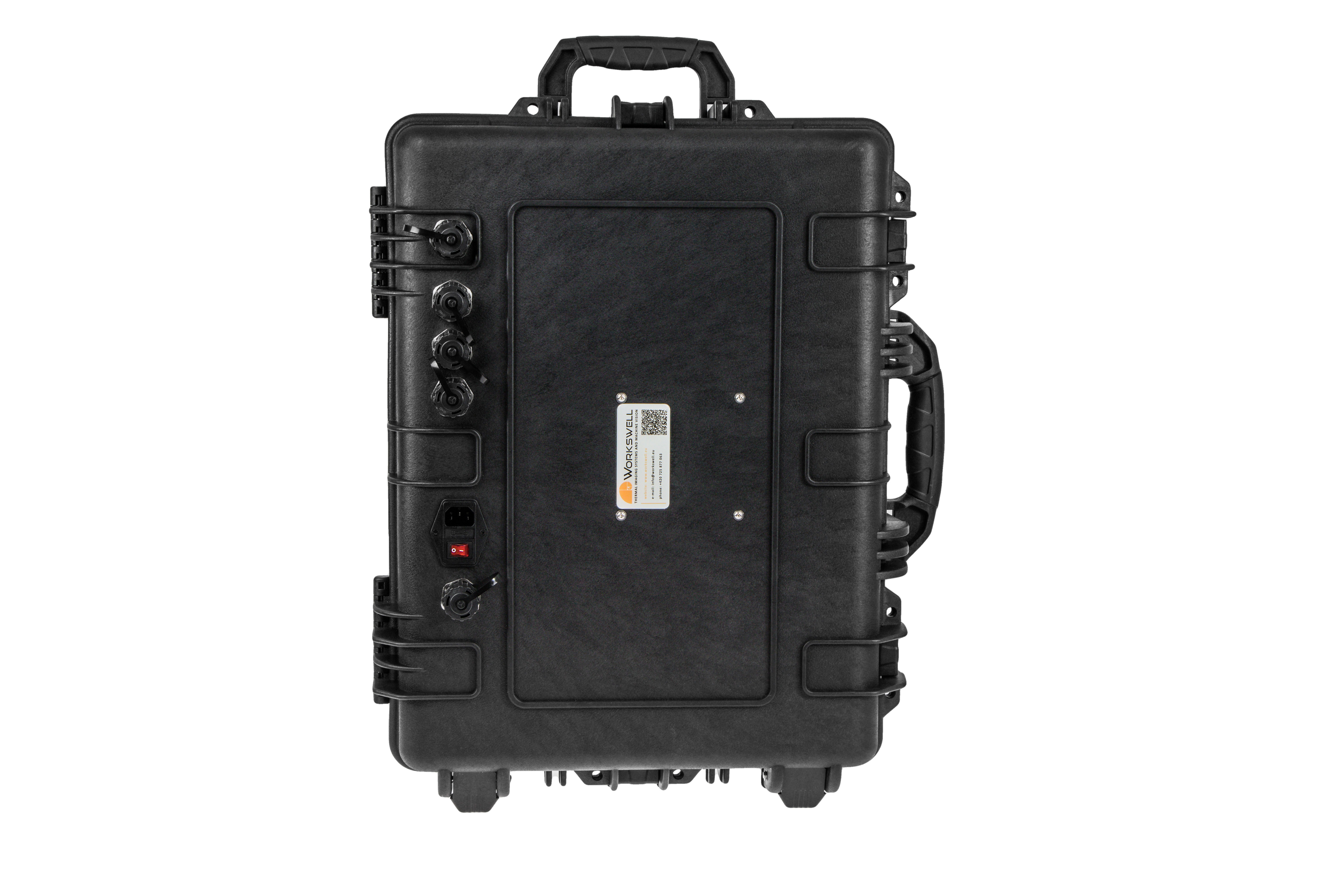

-High IP65 camera and transport case protection
-Temperature range up to 1500 °C (2732 °F)
-Full touchscreen operator visualization and control
-8x digital inputs and outputs, 4x Ethernet ports
-Power over Ethernet cabling and 24VDC supply

Major Applications

-Surface Temperature check when gluing laminate
-Temperature monitoring during laser welding of plastics
-Surface temperature monitoring during aluminium soldering

Technical Specifications

-Central controller unit
·Camera ports: 4 x Gigabit PoE Ethernet, 2 x Gigabit Ethernet for PLC
·Digital Inputs: 4 x isolated (24 VDC compatible) inputs
·Digital Outputs: 5 x open collector outputs
·Power supply: 12-36VDC
·USB ports: 2 x USB3 super speed ports for data uploading
-Thermal cameras:
·resolutions: 640 x 512 pixel, 336 x 256 pixels
·Lenses: Interchangeable and focusable
·Framerate: up to 60Hz
-Temperature ranges:
-25 °C to +150 °C (-13 °F to 302 °F)
-40 °C °C to +550 °C (-40 °F to 1 022 °F)
·optional temperature range +400 – 1 500 °C (752 °F to 2 732 °F)
-Accuracy: ±2% or ±2°C (±3.6 °F)
Temperature sensitivity: =0.03°C (30mK) @ 30°C

General Specifications

-Controller Supply Input: 12-36 VDC or 230 VAC
-Power Dissipation: 150 - 200 W
-Camera Supply Input: Integrated in the control unit, Power over Ethernet supplying
-Operating temperature range: 0 – 45 °C (32 °F – 113 °F)
-Storage temperature: -30 °C – 60 °C (-22 °F – 140 °F)

Catalogue

https://www.elmack.co.in/images/downloads/Catalogue/Thermoinspector mobile.pdf
