Workswell

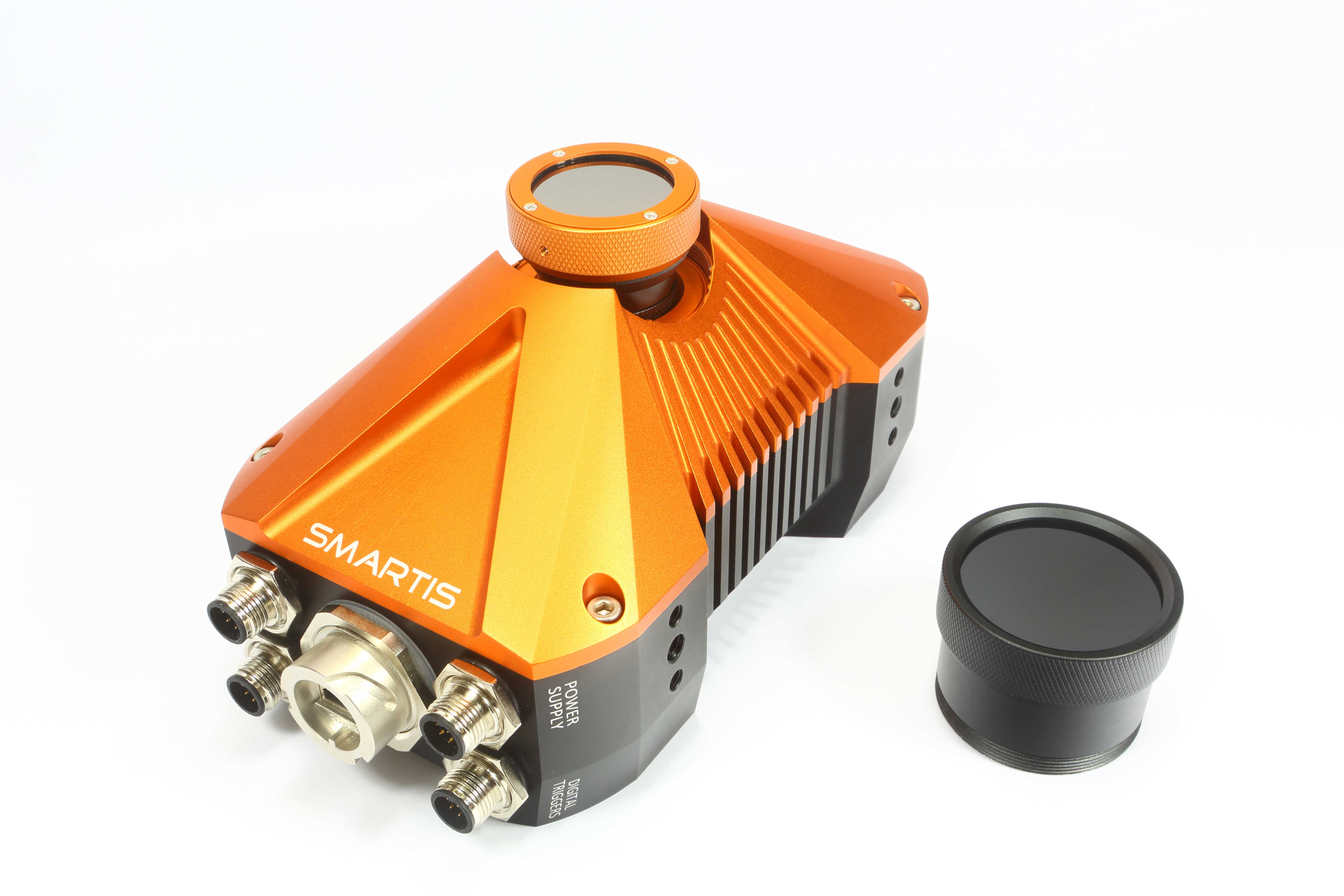

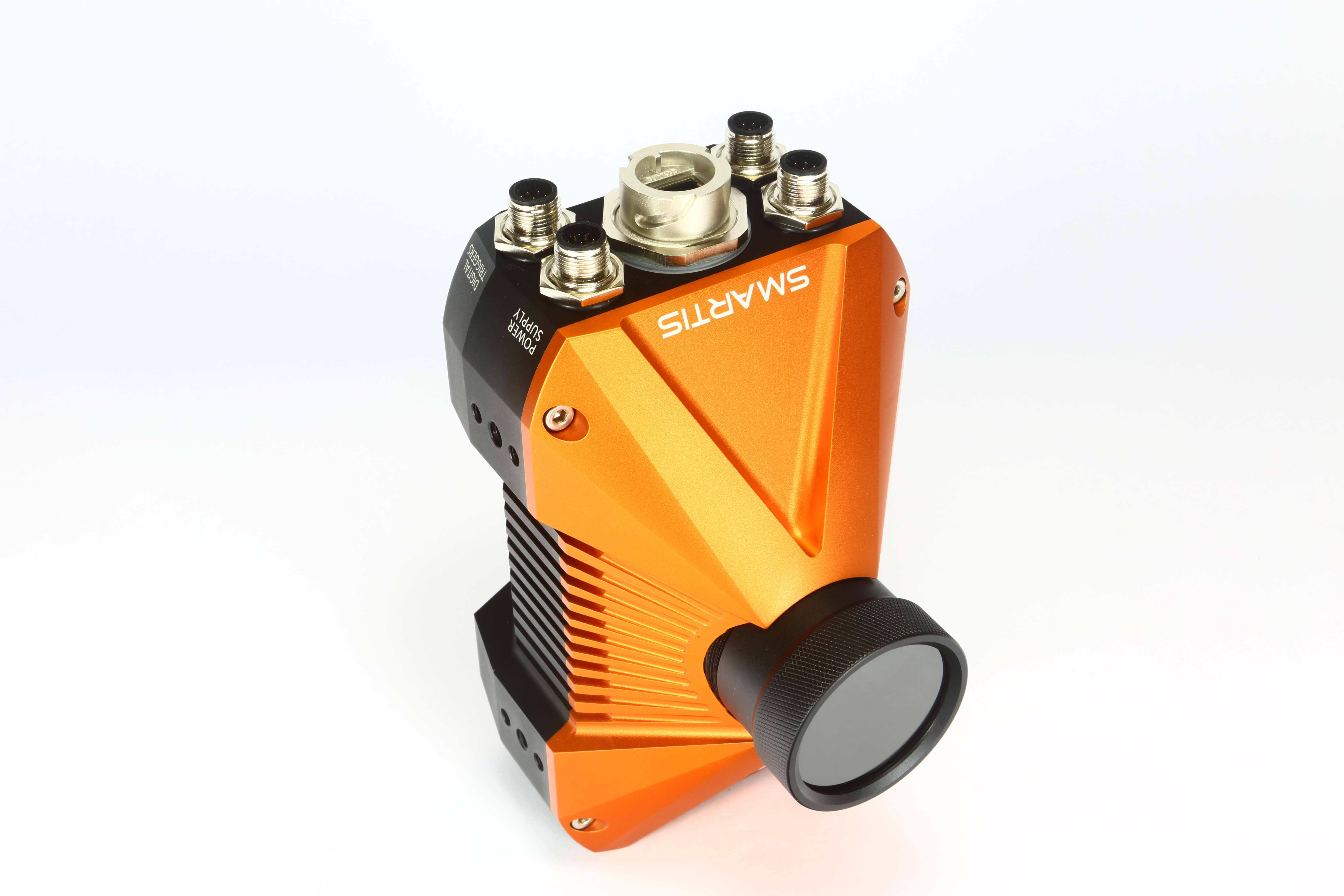

Smartis Smart Radiometric Thermal Camera

Model No :

Workswell Smartis

Part Code :

SMI-336-SUW/ FUW (9Hz, 30Hz, 60Hz)SMI-640-SUW/ FUW (9Hz, 30Hz)

Overview

Automation: Workswell Smartis is all in one system with built in analysis, continuous measurement and control functions. It allows user to use easily Smartis camera without any external PCs or evaluation units.The SMARTIS is TCP/IP Ethernet compliant so analysis and alarm results can be easily applied to PLC. It suppot resolution upto 640x512 pixels and temperature sensitivity up to 0.05°C and temperature range up to 1 500°C (2 732 °F).

Features

-Fully calibrated up to 550 °C (optional +1 500°C)
-Built-in Webserver for control and vizualization
-Ethernet TCP/IP Process communication
-7 digital alarm outputs for technology control
-336px or 640px detector
-4 channel isolated current or voltage outputs
-Standardized M12 circular connectors
-4 digital trigger inputs for sync and timing

Major Applications

-Machine Vision
-Process Control
-Automation
-Metrology
-Pyrometric Functions
-Temp. Measurement

Technical Specifications

-Resolution: 336 x 256 pixels, 640 x 512 pixels
-Image Frequency:9Hz, 30Hz or 60Hz
-Spectral Range: 7.5 – 13.5 µm
-Temperature sensitivity: 0.05°C (50mK)
-Accuracy: ±2 % or ±2 °C (±3.6 °F)
-Detector Type: Uncooled VOx microbolometer
-Focus: Continuous Manual (fixed focusable, min focus distance depends on lens)

General Specifications

-Temperature ranges:
-25 °C to +150 °C (-13 °F to 302 °F)
-40 °C °C to +550 °C (-40 °F to 1 022 °F)
·optional temperature range: +50 – 1 000 °C (122 °F to 1 832 °F)
·optional temperature range: +400 – 1 500 °C (752 °F to 2 732 °F)
-Networking Ethernet: 100Mb/sec, RJ-45, Metal cable gland protection
-Dimensions and weight: 185 x 100 x 105 mm , 1.3 kg, Durable aluminum two-milled body

Catalogue

https://www.elmack.co.in/images/downloads/Catalogue/Workswell Smartis.pdf

Manufacturing details:

https://workswell-thermal-camera.com/thermal-imaging-camera-smartis-industrial/
