SAFETIS Outdoor Pan-Tilt Detect Flare-Ups Before The Fire Starts

Model No :

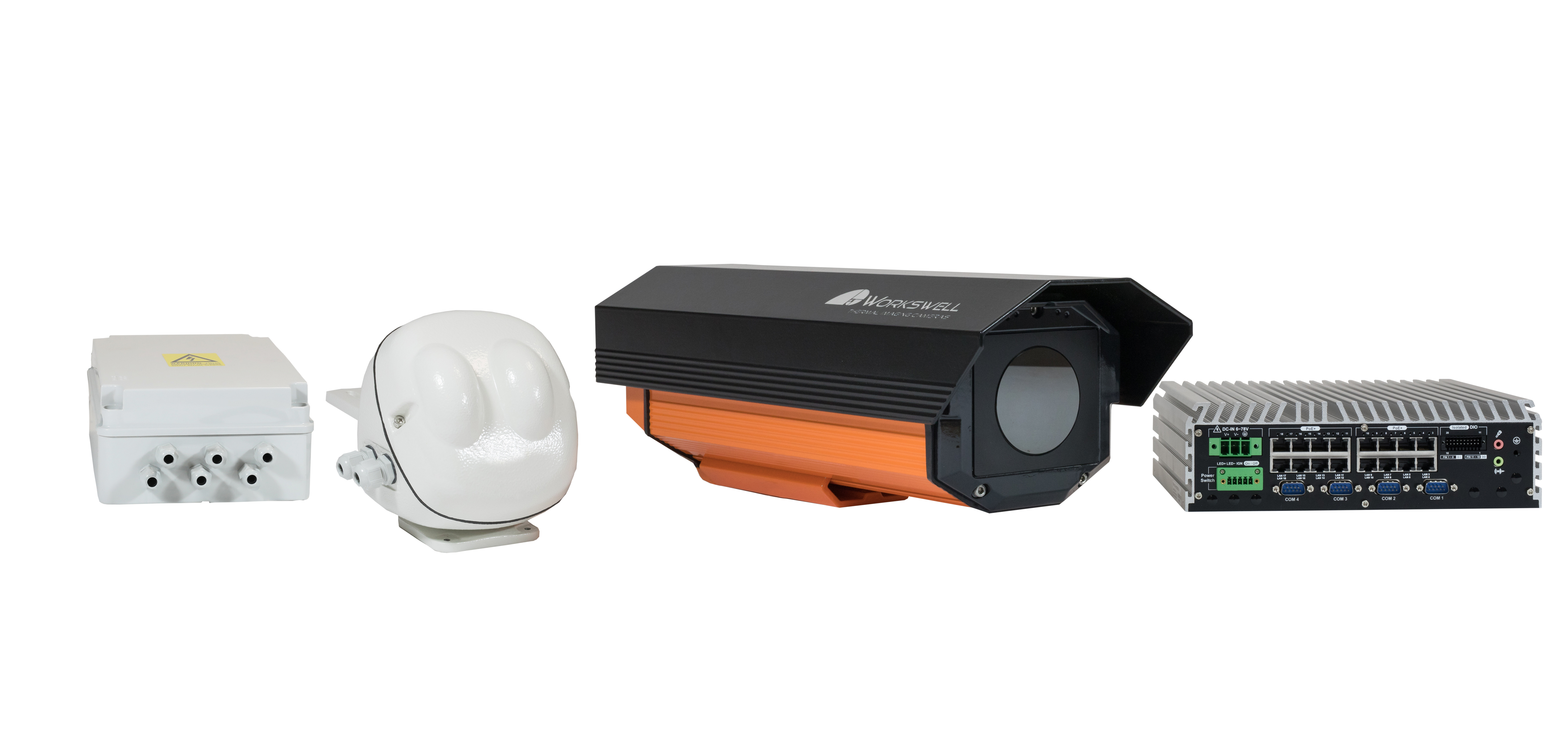

SAFETIS Outdoor Pan-Tilt

Part Code :

Overview

Fire Prevention: Workswell SAFETIS Outdoor Pan-Tilt is the new thermal imaging system designed for early fire detection and protection. This product can be used widely in fire safety fields where 24/7 protection is required such as in waste bunkers,many types of warehouses, electrical substations, landfills, photovoltaic plants etc. SAFETIS Outdoor PT camera can be used and controlled via SAFETIS Control Unit with advanced features.

Features

-SAFETIS Control unit for advanced visualization
-Easy settings of all Pan-Tilt in SAFETIS Control Unit
-High-protection heated outdoor housing IP67
-Fully calibrated up to 550 °C (optional +1 500 °C)
-Ethernet TCP/IP Process communication
-Infinity focus or optional focusing on target
-Resolution 336 px or 640 px detector up to 30 Hz
-Advanced analytics, recording and alarming
-Up to 7 digital alarm outputs in the camera

Major Applications

-Industrial warehouses
-Ammunition warehouses
-Coal warehouses and conveyors
-Power plants and electric energy distribution systems
-Agricultural warehouses and food warehouses

Technical Specifications

-Resolution: 336 x 256 pixels, 640 x 512 pixels
-Image frequency: 9 Hz or 30 Hz
-Spectral range: 7.5 – 13.5 µm
-Temperature sensitivity: 0.05 °C (50 mK)

General Specifications

-Temperature ranges:
-25 °C to +150 °C (-13 °F to 302 °F)
-40 °C °C to +550 °C (-40 °F to 1 022 °F)
-optional temperature range: +50 – 1 000 °C (122 °F to 1 832 °F)
-optional temperature range: +400 – 1 500 °C (752 °F to 2 732 °F)
-Detector type: Uncooled VOx microbolometer
-Focus: Continuous manual (fixed focusable, min focus distance depends on lens)
