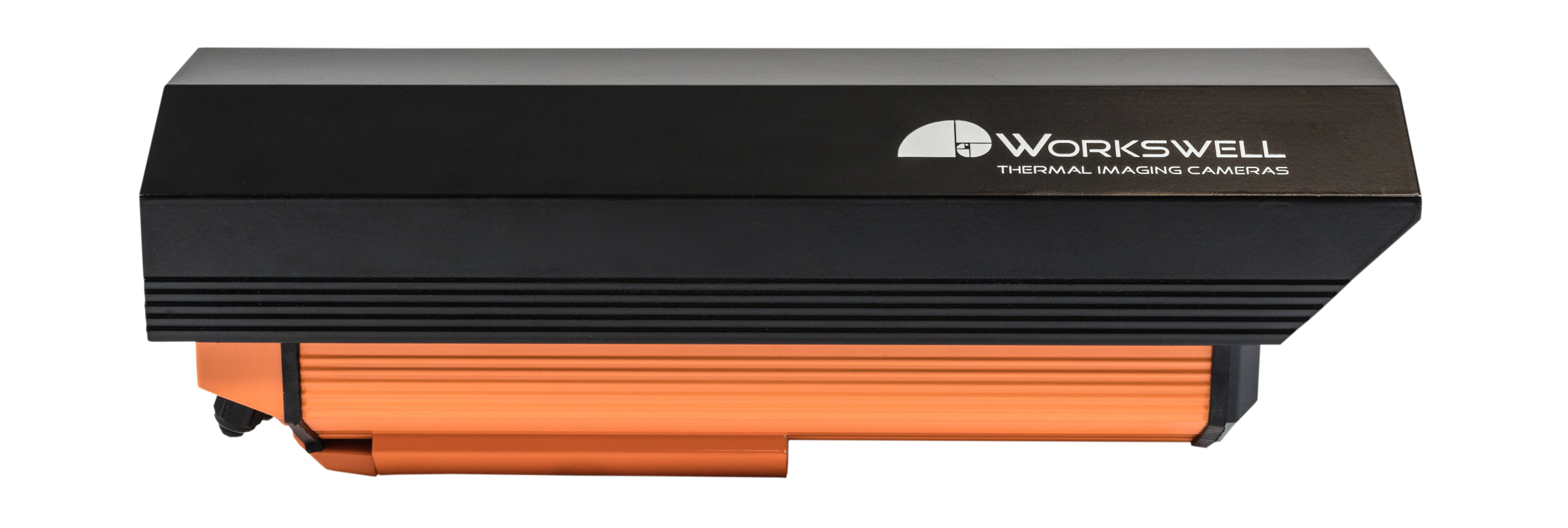

SAFETIS Outdoor Fast detection of the risk of flare up

Model No :

SAFETIS Outdoor

Part Code :

WSO-336-S/ F (9Hz, 30Hz) WSO-640-S (9Hz)

Overview

Fire Prevention: Workswell SAFETIS Outdoor is designed for early fire detection and protection. The major usage of this product is in fire safety fields where 24/7 protection is required like waste bunkers, many types of warehouses, electrical substations, landfills, photovoltaic plants etc. SAFETIS Outdoor camera can be used and controlled via integrated Web-server or via SAFETIS Control Unit with advanced features.

Features

-SAFETIS Control unit for advanced visualization
-Fully calibrated up to 550 °C (optional +1 500 °C)
-Built-in web-server for control and stream
-Resolution 336 px or 640 px detector up to 30 Hz

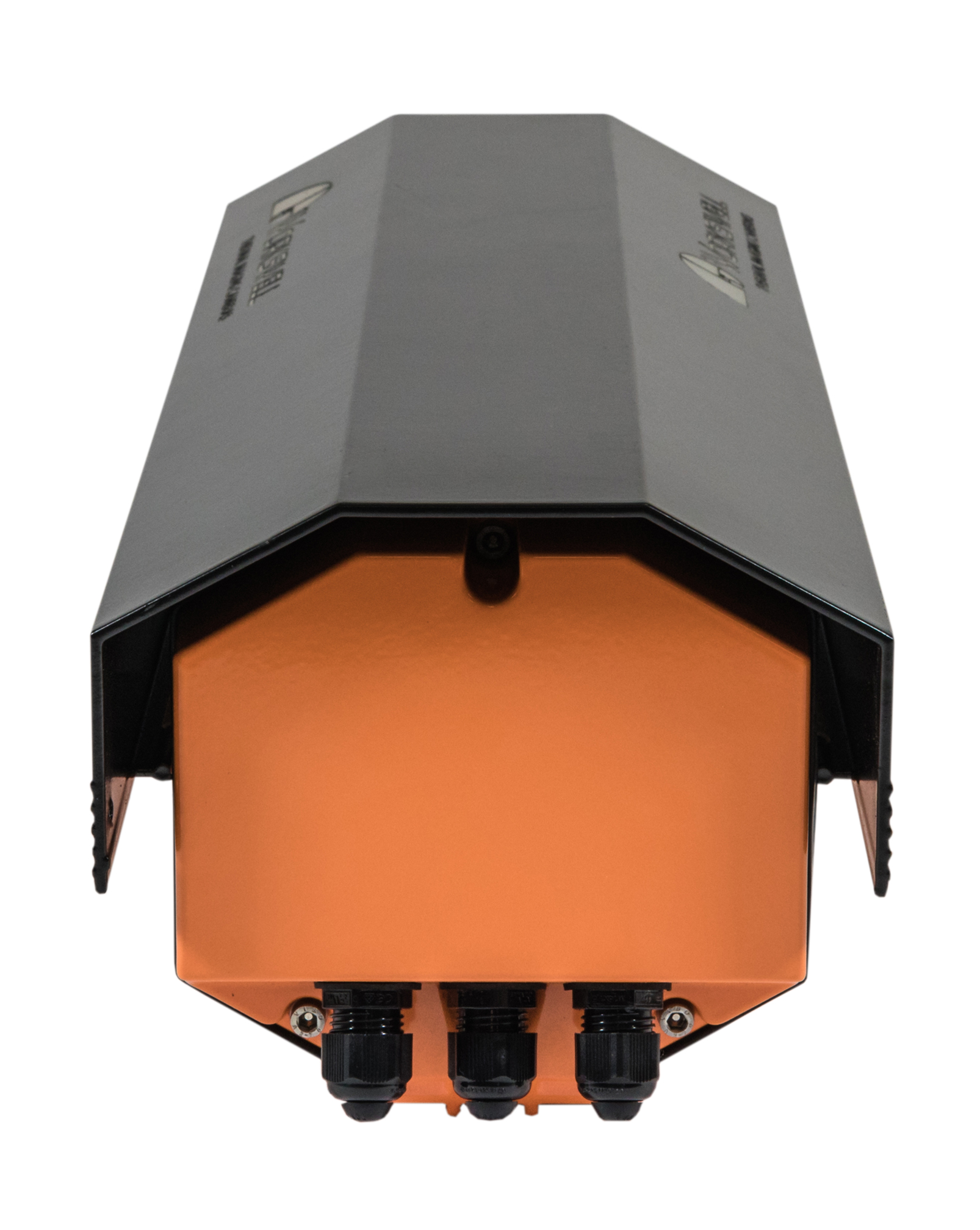

-High-protection heated outdoor housing IP67
-Ethernet TCP/IP Process communication
-Advanced analytics, recording and alarming
-Infinity focus or optional focusing on target
-Up to 7 digital alarm outputs in the camera

Major Applications

-ATEX environment
-Depots and incineration plants, warehouses for hazardous waste
-Conveyor belts
-Chemical and industrial plants
-Cement plants
-Monitoring of perimeters

Technical Specifications

-Resolution: 336 x 256 pixels, 640 x 512 pixels
-Image frequency 30 Hz or 9 Hz
-Temperature sensitivity 0.05 °C (50 mK)
-Spectral range 7.5 – 13.5 µm

General Specifications

-Temperature ranges
-25 °C to +150 °C (-13 °F to 302 °F)
-40 °C °C to +550 °C (-40 °F to 1 022 °F)
-optional temperature range +50 – 1 000 °C (122 °F to 1 832 °F)
-optional temperature range +400 – 1 500 °C (752 °F to 2 732 °F)
-Detector type: Uncooled VOx microbolometer
-Focus: Continuous manual (fixed focusable, min focus distance depends on lens)
