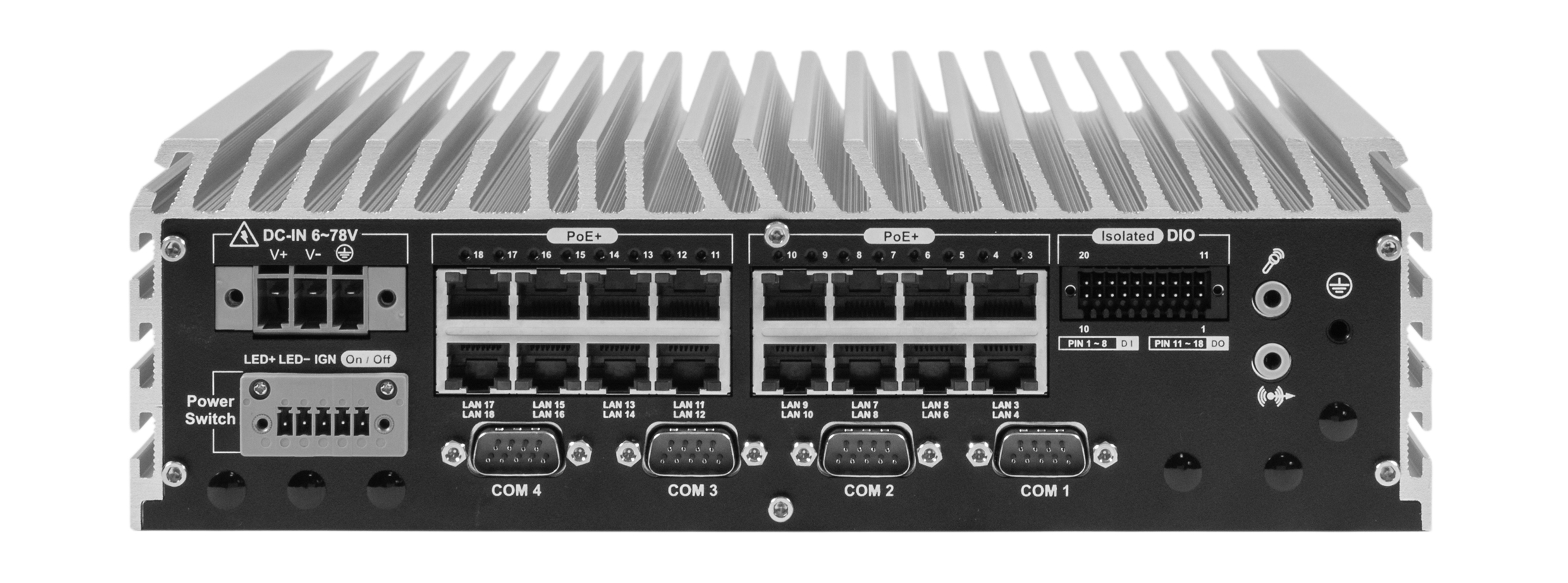

SAFETIS Control Unit Rapid Detection of Flare-Ups
Model No :
SAFETIS Control Unit
Part Code :
SCU-16-4TB

Overview

Fire Prevention: SAFETIS Control Unit is mainly developed for early fire detection and protection where 24/7monitoring is needed, which helps to prevent critical situations and fire hazards that can damage huge amount of company properties and causes unplanned outages. SCUs advance features like thermal imaging measurements and evaluations activates all alarms even before the fire starts .

Features
-Advanced visualization, recording and streaming
-Up to 16 SAFETIS cameras at the same time
-Real-time streaming of each connected SAFETIS
-Additional 7 digital alarm outputs
-Up to 4 TB of memory in each Control Unit
-Advanced DVR functions and temperature analysis
-Periodical recording of radiometric image
-Live graphs based on temperature values
-Settings of all parameters of any SAFETIS unit

Major Applications
-petrochemical, steel, refining or power industry
Technical Specifications
-Processor: Intel® Quad Core i7-6820EQ/i5-6440EQ Processor (Skylake-H)
-Chipset: Intel® CM236
-Memory: 16GB DDR4
-Ethernet: 2 ETH LAN RJ45 connectors
­Display/Monitor interface:
·DVI-D : Up to 1920 x 1200 @ 60Hz
·DisplayPort 1 : Up to 4096 x 2304 @ 60Hz
·DisplayPort 2 : Up to 4096 x 2304 @ 60Hz
-PT (Pan Tilt control) and Alarm interface

General Specifications
-Power Input: 6V to 78V, DC-in
-Power Interface:3-pin Terminal Block : V+, V-, Frame Ground
-Surge Protection: Up to 200V/1ms Transient Power
-Dimensions (W x L x H): 260mm x 215mm x 79mm
-Weight: 4.5 kg (9.92 lb)
-Operating Temperature:-25°C to +50°C (-13 °F to 122 °F)
-Storage Temperature:-40°C to 65°C
