Testo

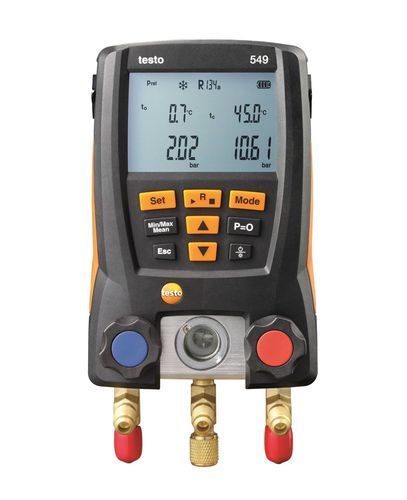

Testo 549 - Entry-Level Digital Manifold
Model No :
Testo 549
Part Code :
0560 0550

Overview

The Testo 549, our entry-level digital manifold is a 2-way manifold can be used for 60 refrigerants and offers practical solutions for your everyday work, is easy to handle and can even withstand harsh environmental conditions. With its solid housing, the instrument is reliably protected against impacts in compliance with protection class IP 42. You can use the suspension hook to secure the manifold during the measuring process. Thanks to the illuminated display, you can read off the readings easily, even in dark environments.

Features
- 60 current refrigerants stored in the instrument
- Calculation of superheating and subcooling in real time (with optional clamp probe): saves you from having to carry
- Temperature-compensated leakage test
- Two temperature-compensated pressure sensors

Major Applications
- Maintenance or installation work on refrigeration systems and heat pumps
Technical Specifications
-Temperature:
• Measuring range: -50 to +150 °C
• Accuracy: ±0.5 °C
- Pressure measurement:
• Measuring range: -1 to +60 bar
• Accuracy: ±0.5 % fs
- Resolution: 0.01 bar
- Vacuum measurement:
• Measuring range: -1 to 0 bar

General Specifications
- Operating temperature: -20 to +50 °C
- Protection class: IP42
- Battery life: 250 h (without illumination, without Bluetooth®)
- Storage temperature: -20 to +60 °C
