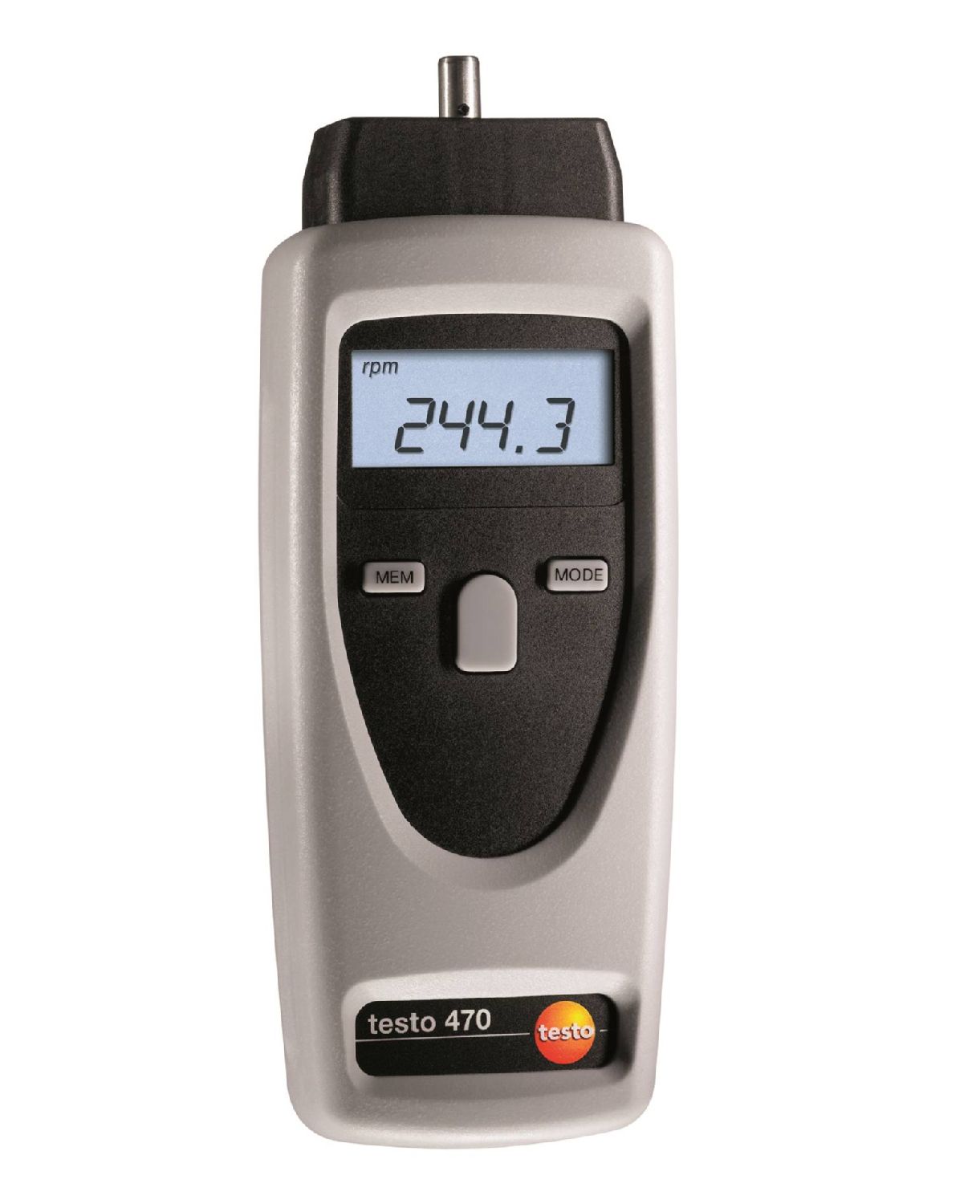

Testo 470 - Digital Tachometer
Model No :
Testo 470
Part Code :
0563 0470

Overview

The rpm measuring instrument Testo 470, which can be operated with one hand, offers an optimum combination of optical and mechanical rpm measurerment. By simply attaching an adapter for a probe tip or a speed disc, the optical measurement becomes a mechanical one. This allows speeds and lengths to be measured additionally.

Features
- Simple one-hand operation
- Measurement of rpm, speeds and lengths
- Storage of mean, max. and min. values as well as the last reading

Major Applications
- To record how fast a rotating object rotates. can check whether motors, shafts and fans are functioning correctly
Technical Specifications
- rpm: Optical
- Measuring range: 1 to 99999 rpm
- Accuracy: ±0.02 % of mv
- Resolution: 0.01 rpm (1 to 99.99 rpm) ,0.1 rpm (100 to 999.9 rpm),1 rpm (1000 to 99999 rpm)
- rpm: Mechanical
- Measuring range: 0.1 to 19999 rpm
- Accuracy: ±0.2 % of mv

General Specifications
- Display type: LCD
- Display size: one-line
- Display function: 5 digit LCD display
