Testo

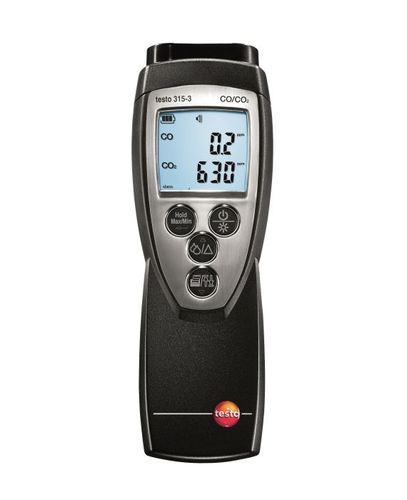

Testo 315-3 - CO and CO2 Monitor

Model No :

Testo 315-3

Part Code :

0632 3153

Overview

The Testo 315-3 CO and CO2 monitor is designed to measure carbon monoxide and carbon dioxide parallel in heating systems and ventilation ducts. The readings are presented on an easy-to-read display. A visual and audible alarms are activated when CO/CO2 thresholds are breached. The thresholds can be adjusted to suit your range of applications.

Features

- Parallel CO & CO2 measurement
- Visual and audible alarm when thresholds are breached – adjustable thresholds
- Extremely robust sensors
- Conforms to the European Standard EN 50543 and British Standard BS 6173:2009

Major Applications

- CO / CO2 measurement in the heated environment

Technical Specifications

- Attachable humidity module - Capacitive
• Measuring range: +5 to +95 %RH
- Accuracy: ±2.5 %RH (5 to +95 %RH
- Ambient CO2:
• Measuring range: 0 to 10000 ppm
- Ambient CO:
• Measuring range: 0 to 100 ppm
- Accuracy: ±3 ppm (0 to 20 ppm) , ±5 ppm (>20 ppm)
- Resolution: 0.5 ppm
- Temperature:
• Measuring range: -10 to +60 °C
- Accuracy: ±0.5 °C (±1 Digit)
- Resolution: 0.1 °C

General Specifications

- Operating humidity: 0 to 95 %RH
- Operating temperature: 0 to +40 °C
- Protection class: IP40 acc. to EN 60529
- Standards: According to EN 50543 EU-/EG-guidelines 2004/108/EG
- Interface: IRDA / optional Bluetooth
- Storage temperature: -20 to +60 °C

Datasheet

https://www.elmack.co.in/images/Downloads/Catalogue/Testo 315-3-Data-sheet.pdf

Manufacturing details:

https://www.Testo.com/en-IN/Testo-315-3/p/0632-3153
