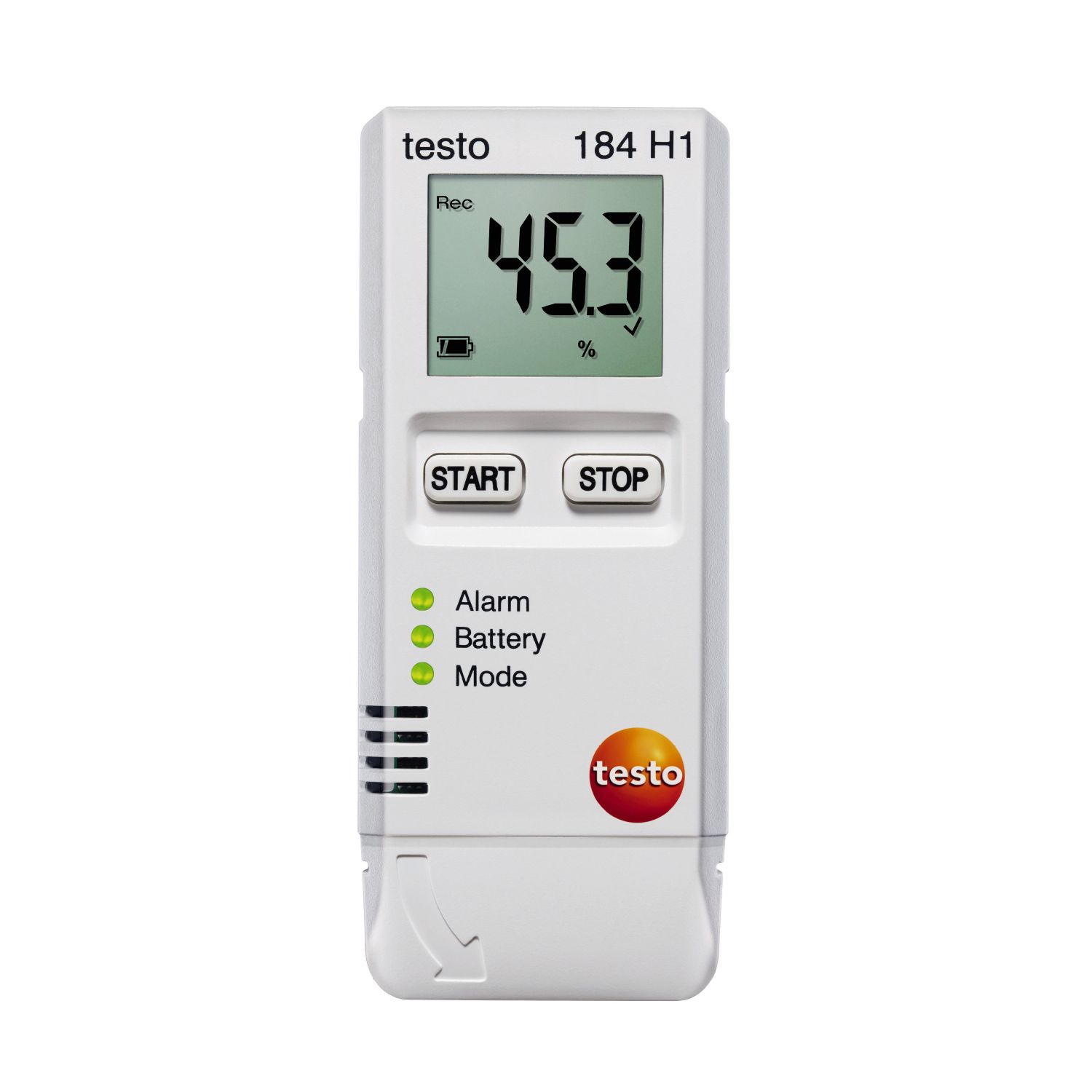

Testo 184 H1 - Air humidity and Temperature Data Logger
Model No :
Testo 184 H1
Part Code :
0572 1845

Overview

With the Testo 184 H1 data logger for humidity and temperature, you can now monitor the transport of sensitive products, such as food, pharmaceuticals, electronic items or artwork, both safely and conveniently. A start and stop button means the humidity data logger guarantees really easy operation for data recording. At the destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to during transport.

Features
- Unlimited operating time
- All in one logger: PDF measurement data, configuration file and instruction manual
- Immediate creation of a PDF report directly after connection to a computer
- Compliant with GxP, 21 CFR Part 11 and HACCP

Major Applications
- Monitoring and documentation of temperature, humidity and shock in food logistics
- Monitoring and documentation of temperature and humidity during the transport of flowers

Technical Specifications
-Temperature : NTC
• Measuring range : -20 to +70 °C
- Accuracy : ±0.5 °C (0 to +70 °C), ±0.8 °C (-20 to 0 °C)
- Resolution : 0.1 °C
- Reaction time : t90 = 30 min
• Measuring rate : 1 min to 24 h
- Humidity - Capacitive
• Measuring range : 0 to 100 %RH
- Accuracy : ±1.8 %RH, +3 % of mv (at 25 °C, 5 % to 80 %RH), ±0.03 %RH/K (at 0 to 60 °C) , ±1 %rF Hysterese, ±1 %rF/year Drift
- Resolution : 0.1 %RH
- Measuring rate : 1 min to 24 h

General Specifications
- Operating temperature : -20 to +70 °C
- Protection class : IP30
- System requirements : Adobe® Acrobat Reader
- Standards : CE 2014/30/EU; 21 CFR Part 11
- Certificate type : Certified by HACCP International
- Channels : 2 internal
- Operating time : Unlimited
- Authorizations : CE
