Testo 176 P1 - Data Logger
Model No :
Testo 176 P1
Part Code :
0572 1767

Overview

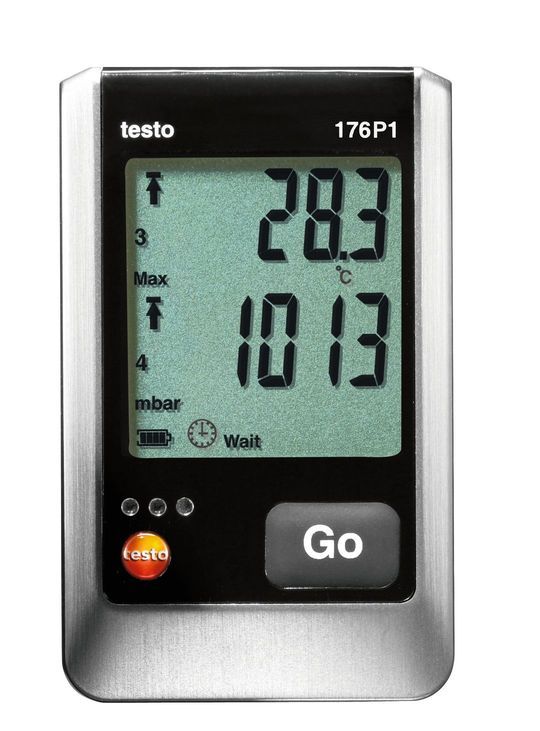

Pressure data logger Testo 176 P1 has an integrated sensor which measures absolute pressure precisely in the range from 600 mbar up to 1100 mbar.
Up to two temperature/humidity probes can be additionally connected to the 5-channel pressure data logger Testo 176 P1. A wide selection of probes is available to you for this purpose.
The Testo 176 P1 data logger for absolute pressure, temperature and humidity guarantees high data security and reliable measurement results on the basis of modern measurement technology.

Features
- Continuous measurement and documentation of absolute pressure
- Two optionally connectable probes for humidity and temperature values
- Large measurement data memory for up to 2 million measurement values
- Software for data evaluation on a PC

Major Applications
- Monitoring and documentation of laboratory conditions
Technical Specifications
- Temperature : NTC
• Measuring range : -20 to +70 °C
- Accuracy : ±0.2 °C (-20 to +70 °C) ±1 Digit, ±0.4 °C (Remaining Range) ±1 Digit
- Resolution : 0.1 °C
- Humidity - Capacitive
• Measuring range : 0 to 100 %RH*
- Accuracy : dependent on probe selected
- Resolution : 0.1 %RH
- Absolute Pressure
• Measuring range : 600 to 1100 mbar
- Accuracy : ±3 mbar (0 to +50 °C) ±1 Digit
- Resolution : 0.1 mbar

General Specifications
- Operating temperature : -20 to +70 °C
- Protection class : IP54
- Channels : 4 external; 1 internal
- Connectable probes : 2 x NTC temperature probe or 2 x humidity probe
- Standards : EU-guideline 2014/30/EU; 2011/65/EU
- Measuring rate : 1 s to 24 h; 2 s to 24 h (online measurement)
