Testo

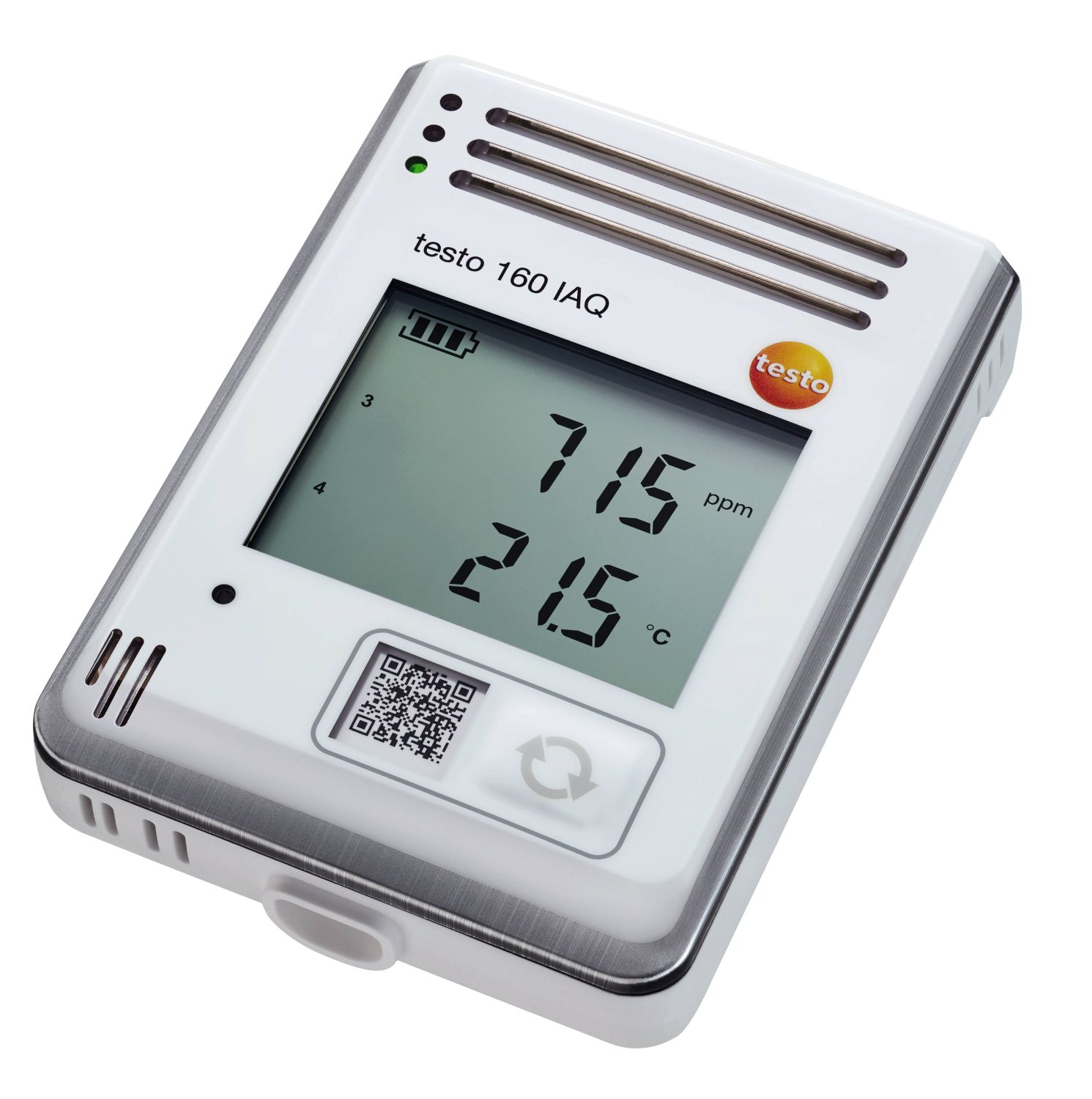

Testo 160 IAQ - WiFi Data Logger
Model No :
Testo 160 IAQ
Part Code :
0572 2014

Overview

If there are a lot of people in a room, the air quality deteriorates. Reliable monitoring is particularly important, because indoor air quality is linked to our well-being. The WiFi data logger testo 160 IAQ is ideal for monitoring indoor air quality in facility management.
Testo 160 IAQ measures data and gets the data stored by the data logger directly in the Testo Cloud via your WLAN. This means you can also document and analyze your measurement data over a longer period of time. It is ideal for monitoring indoor air quality.
The small dimensions of the data logger testo 160 IAQ (82 x 117 x 32 mm) and its simple design enable it to be easily positioned in any room.

Features
- Ideal for monitoring indoor air quality (IAQ)
- Blends in perfectly with the surroundings thanks to an optional, customizable deco-cover
- Simple to install, integrate and operate – particularly user-friendly with air quality displayed in the form of a traffic light system
- Perfectly networked: data storage in the Testo Cloud, real-time alarm via email or SMS (optional in conjunction with an Advanced licence)

Major Applications
- Monitoring indoor air quality (IAQ)
Technical Specifications
- Humidity : Capacitive
• Measuring range : 0 to 100 %RH (non-condensing)
- Accuracy : ±2.0 %RH at +25 °C and 20 to 80 %RH ,±3.0 %RH at +25 °C and < 20 and > 80 %RH,±1.0 %RH hysteresis,±1.0 %RH / year drift
- Resolution : 0.1 %RH
- Absolute Pressure
• Measuring range : 600 to 1100 mbar
- Accuracy : ±3 mbar at +22 °C
- Resolution : 1 mbar
- Ambient CO2
• Measuring range : 0 to 5000 ppm
- Accuracy : ±(50 ppm + 3 % of mv) at 25 °C
- Temperature
• Measuring range : 0 to +50 °C
- Accuracy : ±0.5 °C
- Resolution : 0.1 °C

General Specifications
- Operating temperature : 0 to +50 °C
- Protection class : IP20
- Measuring rate : Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h
- Communication rate : Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h
- WLAN Connectivity : supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X;
- Radio range : 100 m
- Memory : 32,000 Measuring values / Sum of all channels
- Storage temperature : 0 to +50 °C
