Megger

Megger PD Detector

Model No :

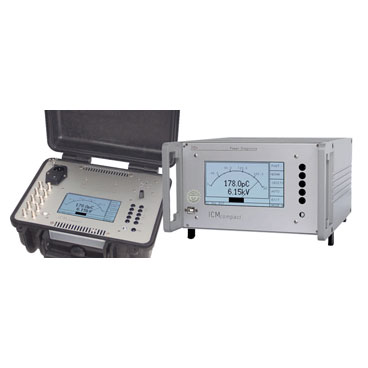

Megger ICM Compact

Part Code :

Overview

Megger's Power Diagnostix ICM Compact provides a simple push-button interface and on-screen menus in an embedded LCD panel. The LC display modes include a simple PD charge meter with adjustable “needle” sensitivity, monochrome phase-resolved PD patterns for classificationof defects, and a scope-like display showing phase summed charge pulses superimposed with the applied voltage wave. Although the ICMcompact is an autonomous unit, it can be connected to a computer installed with Power Diagnostix software to capture screenshots or to implement remote control of the unit.

Features

- The ICM Compact DSO option can be used to locate partial discharge defects in power cable. Using time domain reflectometry, in which the PD and its “echoes” travel the length of the cable under test, the ICMcompact provides the proportional distance of the PD fault along the cable
- The unit can be used with the full range of the ICM series preamplifiers, covering the IEC 60270 standard frequencies

Major Applications

- Quality control tests
in the manufacture of electrical products and for quality assurance of industrial and utility equipment from capacitors and bushings to
gas-insulated switchgear, voltage transformers, power plants, and others.

Technical Specifications

- Scope display
- Voltage Measurement
- HVM display
- DSO Display
- Scope norm option
- PD Spectrum analysis option
- An option allows displaying a Lissajou visualization

General Specifications

- Mains supply: 90–264 VAC, 47–440 Hz
(automatic)
- Line fuse: 1.6 A (time-lag)
- Power requirements: Approx. 40 VA
- Display: Backlit LCD
- Display size: 120 mm x 64 mm
- Display resolution: 128 x 240 pixels b/w
- Operation: 5 menu supported
pushbuttons, 5 fix function pushbuttons
with multi-channel version or remote controlled via software
- Recorder output: 0–10 V with RO=100 W
(re-converted analog value of the meter reading)
- Operation temperature: 10–40 °C (non-condensing)
- Input impedance: 50 W || 50 pF (AMP IN)

Datasheet

https://www.elmack.co.in/images/Downloads/Catalogue/Megger ICM Compact_Datasheet.pdf
