Fluke Calibration

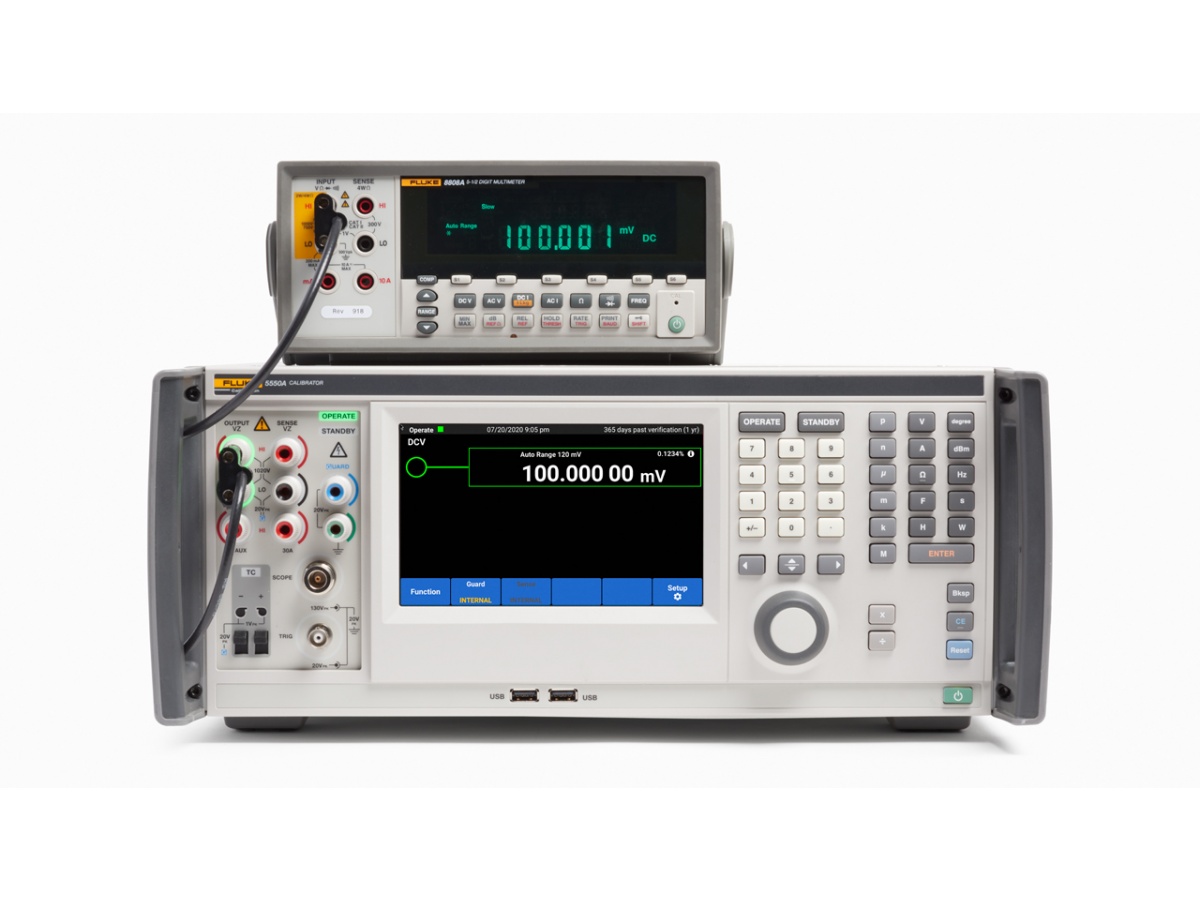

5560A High-Performance Multi-Product Calibrator

Model No :

5560A

Part Code :

5128168

Overview

5560A is a high performance multi product calibrator providing the broadest electrical workload coverage and
highest accuracy for calibrating the most demanding modern workloads.The 5560A calibrates the most popular benchtop 6.5-digit multimeters with better than 4:1 test uncertainty ratio(TUR), and clamp meters to 1500 A.

Features

-4:1 test TUR for most popular 6.5-digit multimeters
-Calibrate meters that measure AC/DC voltage, resistance,capacitance and inductance
-30 A continuous current output extends AC/DC measurement ranges
-Visual Connection Management™output terminals guide connections, preventing connection errors

Major Applications

-3rd Party Calibration Lab
-Panel Meter Manufacturer
-Multimeter Manufacturer(upto 6.5 DMM)
-Govt Calibration Lab
-Power Plant(C&I Lab) and Steel Plant(Electrical and Instrumentation Lab)

Technical Specifications

-Direct Voltage: 0 V to ± 1020 V
-Direct Current: 0 A to ± 30.2 A
- Alternating voltage: 1 mV to 1020 V 3 Hz to 500 kHz
-Alternating current: 10 µA to 30.2 A 3 Hz to 30 kHz
-Inductance variable:12 µH to 120 H
- Power (dual output – phantom loads): 30.9 KW

General Specifications

-Phase Control: 0.01°
-Frequency Uncertainty: <2.5 ppm
- Interfaces / Remote commands: USB 2.0, Ethernet Telnet, RS-232 and GPIB

Catalogue

https://www.elmack.co.in/images/downloads/Catalogue/5560A.pdf
