Workswell
Workswell Infrared Camera(WIC) Stationary Radiometric Thermal Camera
Model No :
Workswell Infrared Camera(WIC)
Part Code :
WIC-336-SUW/ FUW/ DFUW (9Hz/ 30Hz/60Hz) WIC-640-SUW/ FUW (9Hz/ 30Hz)

Overview

Automation: WIC thermal camera is designed to monitor a wide variety of Industrial and R & D projects.Its a highly sensitive imager designed and manufactured for easy and user friendly intergration.WIC are powered directly from USB3 or Ethernet cable instead of external supply adapter. All Workswell Infrared Cameras use the newest Long Wave Infrared Detector Technology.Workswell’s CorePlayer software automatically identifies thermal cameras, sets an IP address, and ensures that each camera connects to your system.

Features
-Fully radiometric and calibrated
-LWIR 640 px and 336 px detector
-30mK sensitivity in standard
-Powerful Analyzing Software
-USB3 or 1Gb/s Ethernet interface
-4-side tripod and metric threads
-Fast 60 Hz camera versions
-IP65 plugin back cover

Major Applications
-Machine Vision
-Process Control
-Automation
-Metrology
-Pyrometric Functions
-Temp. Measurement

Technical Specifications
-Resolution: 640 x 512 pixels and 336 x 256 pixels
-Framerate: 60Hz, 30 Hz or 9 Hz available
-Accuracy: ±2 % or ±2 °C (±3.6 °F)
-Temperature sensitivity: =0.03°C (30mK) @ 30°C
-Spectral Range: 7.5 – 13.5 µm

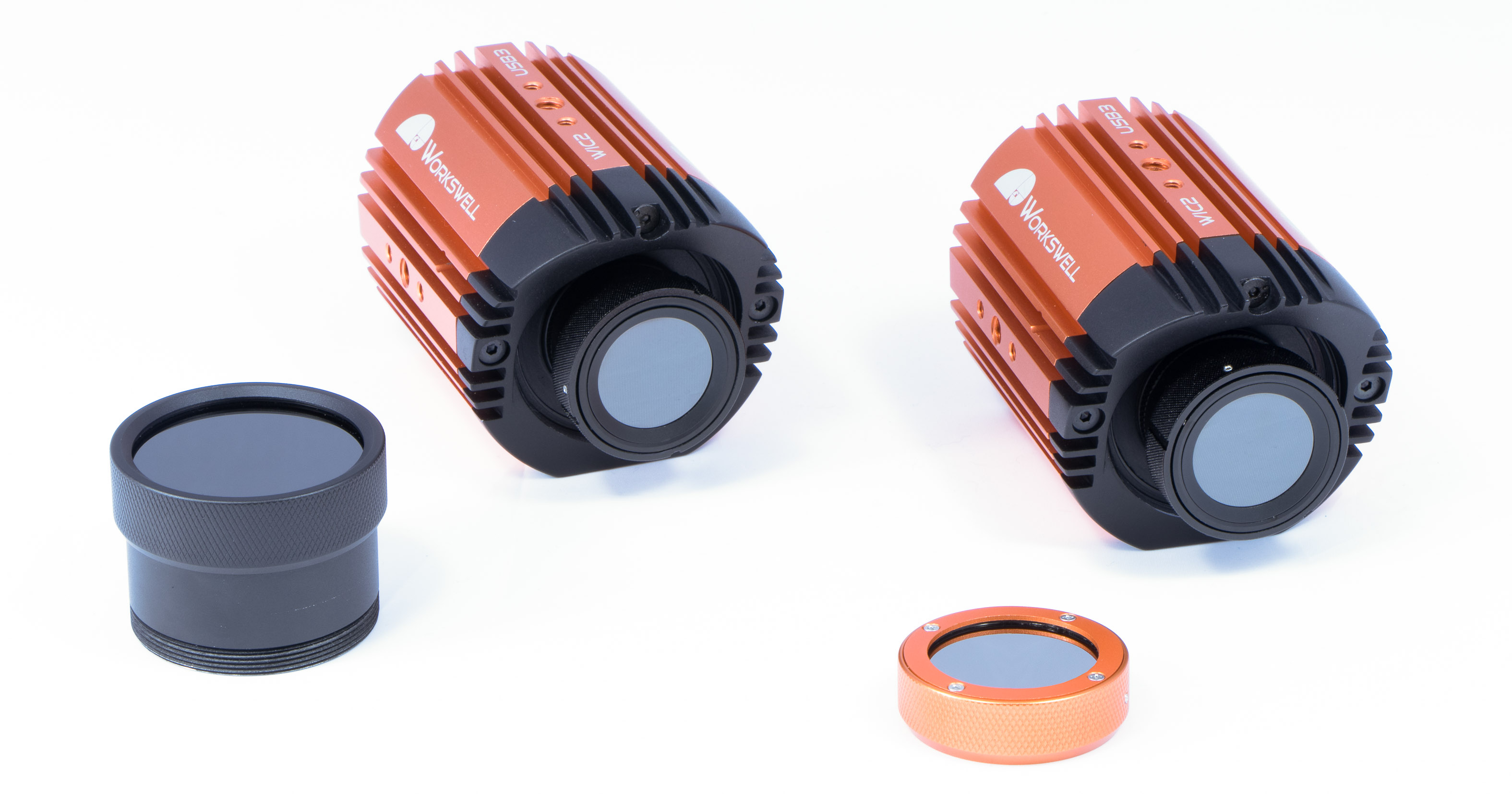

-Available Lenses: 6.8mm, 9mm, 13mm, 19mm

General Specifications
-Temperature ranges:
-25 °C to +150 °C (-13 °F to 302 °F)
-40 °C °C to +550 °C (-40 °F to 1 022 °F)
·optional temperature range +50 – 1 000 °C (122 °F to 1 832 °F)
·optional temperature range +400 – 1 500 °C (752 °F to 2 732 °F)
-Input Supply Voltage: 5 V DC for USB3, Power over Ethernet 48V type

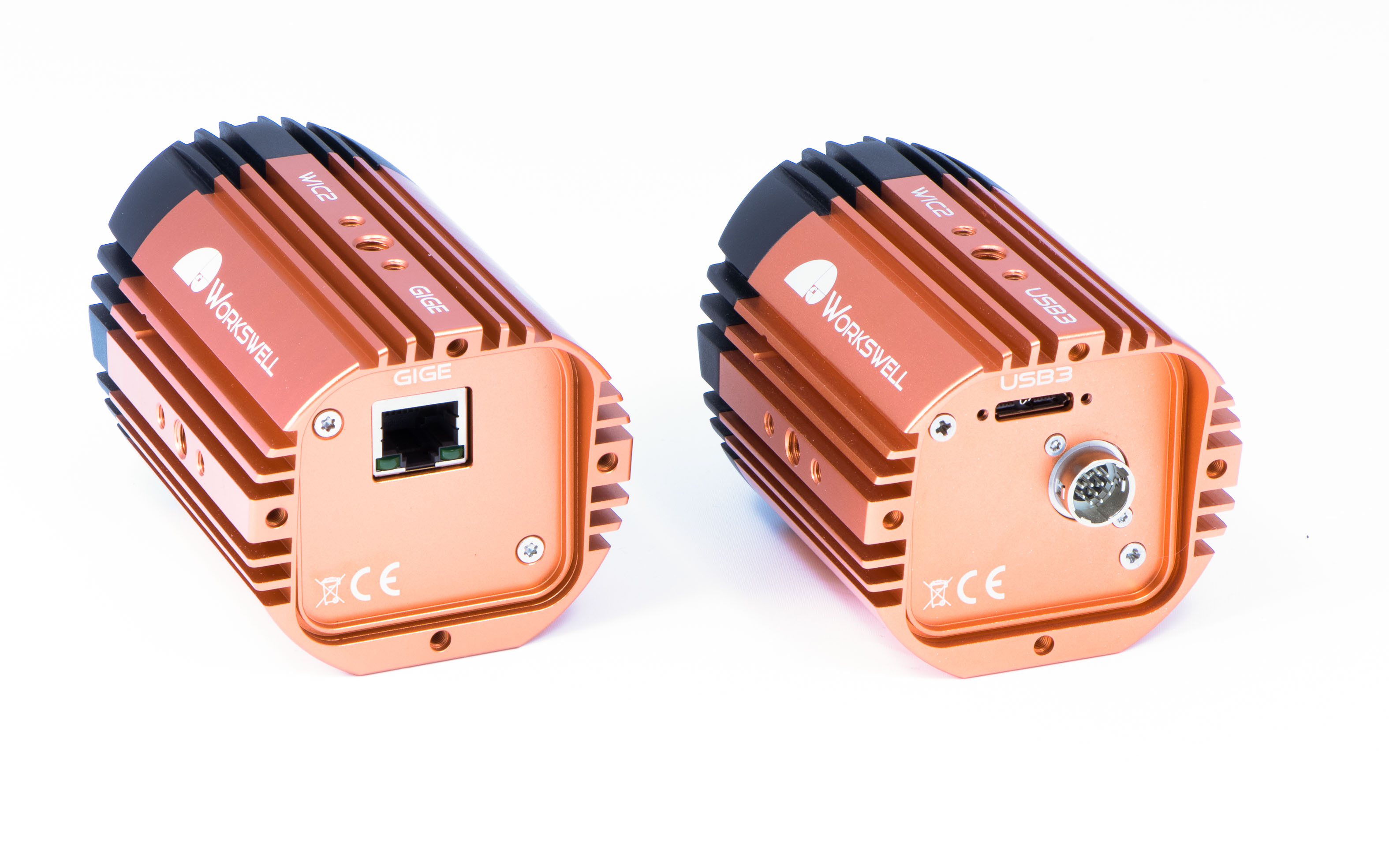

-Ethernet version: Gigabit Ethernet, RJ-45 connector
-USB3 version: USB3, Thumbscrews lock micro USB connector
