Workswell

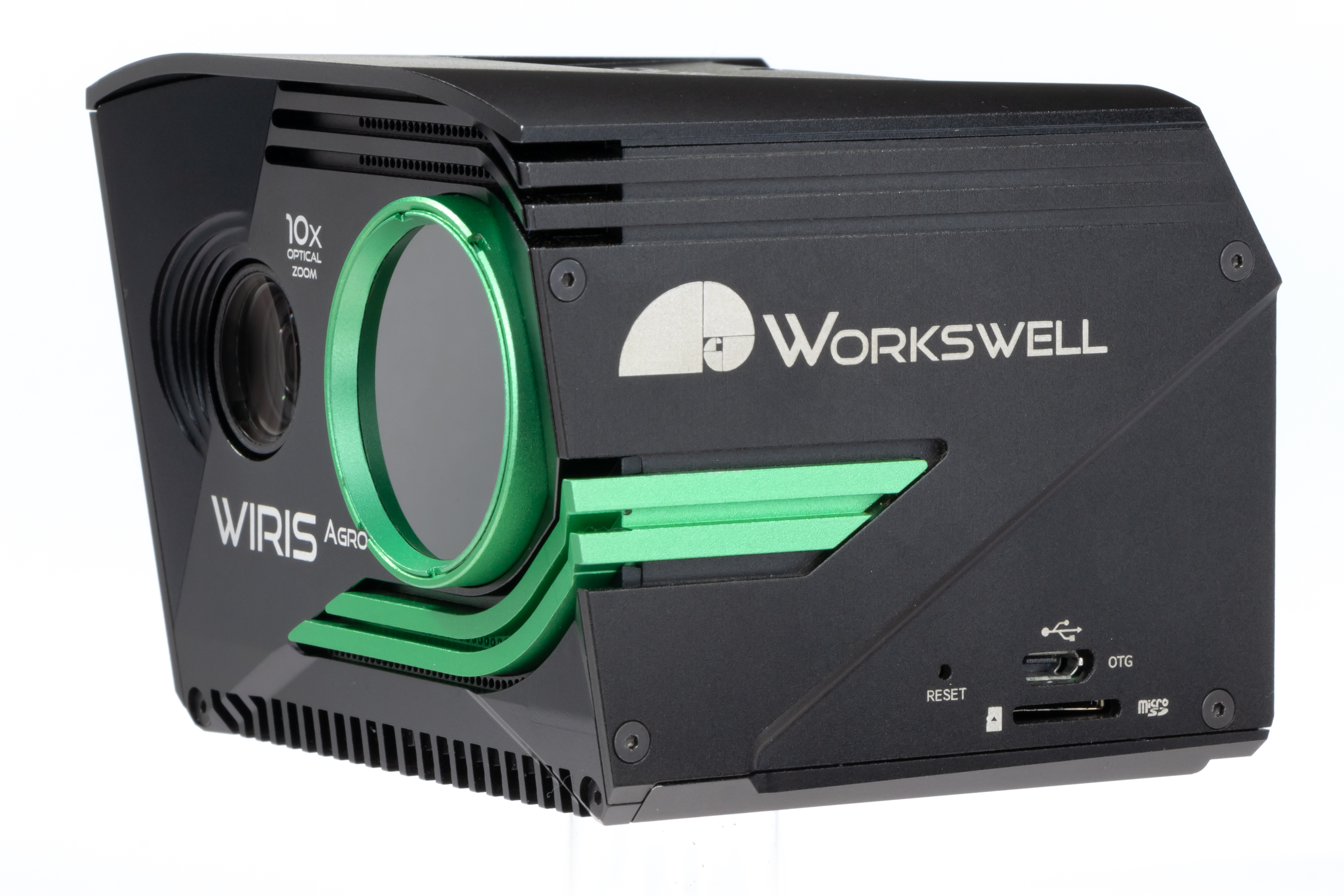

WIRIS Agro R Crop Water Stress Index Camera

Model No :

WIRIS Agro R

Part Code :

CWI-640-S45-128

Overview

UAV payloads: WIRIS Agro R is a first device of its kind, designed to map water stress across large areas.It plays critical role in the field of precision agriculture.It helps in the determination of the water stress value in a given stand of plants.This information may then be used to determine yield maps, optimize irrigation and control water management remedies.

Features

-CWSI onboard processing: Evaluation of Crop Water Stress Index (CWSI) onboard in real-time
-Operating onboard system: CWSI OS for full real-time data streaming and evalution during the flight
-Biomass cover index in %: Real-time percentage calculation of the mass of the vegetation in RGB

Major Applications

-Water Status Monitoring
-Irrigation Management
-Phenotyping
-Biomass Cover Index

Technical Specifications

-Sensor resolution: 640 x 512 pixels
-FPA active sensor size:1.088 x 0.8705 cm
-Type of sensor: LWIR band sensor
-CWSI evaluation range: 0-100% (100% means very stressed)
-Temperature sensitivity:0.03 °C (30 mK)
-Field of view of the lens: 45°
-Digital Visual Camera Resolution: 1920 x 1080 pixels (Full HD)

General Specifications

-Input supply voltage: 9-36 VDC, Coaxial 2 x 6.4 mm, outer shell - GND
-Power dissipation (avg.): 12 W
-Weight:< 430 grams
-Dimensions (L x W x H): 83 mm x 85 mm x 68 mm
-Mounting: 2 x 1/4-20 UNC thread (1x bottom side, 1x upper side)
-Operating temperature range: -10 °C to +50 °C
-Storage temperature range: -30 °C to +60 °C
