Workswell

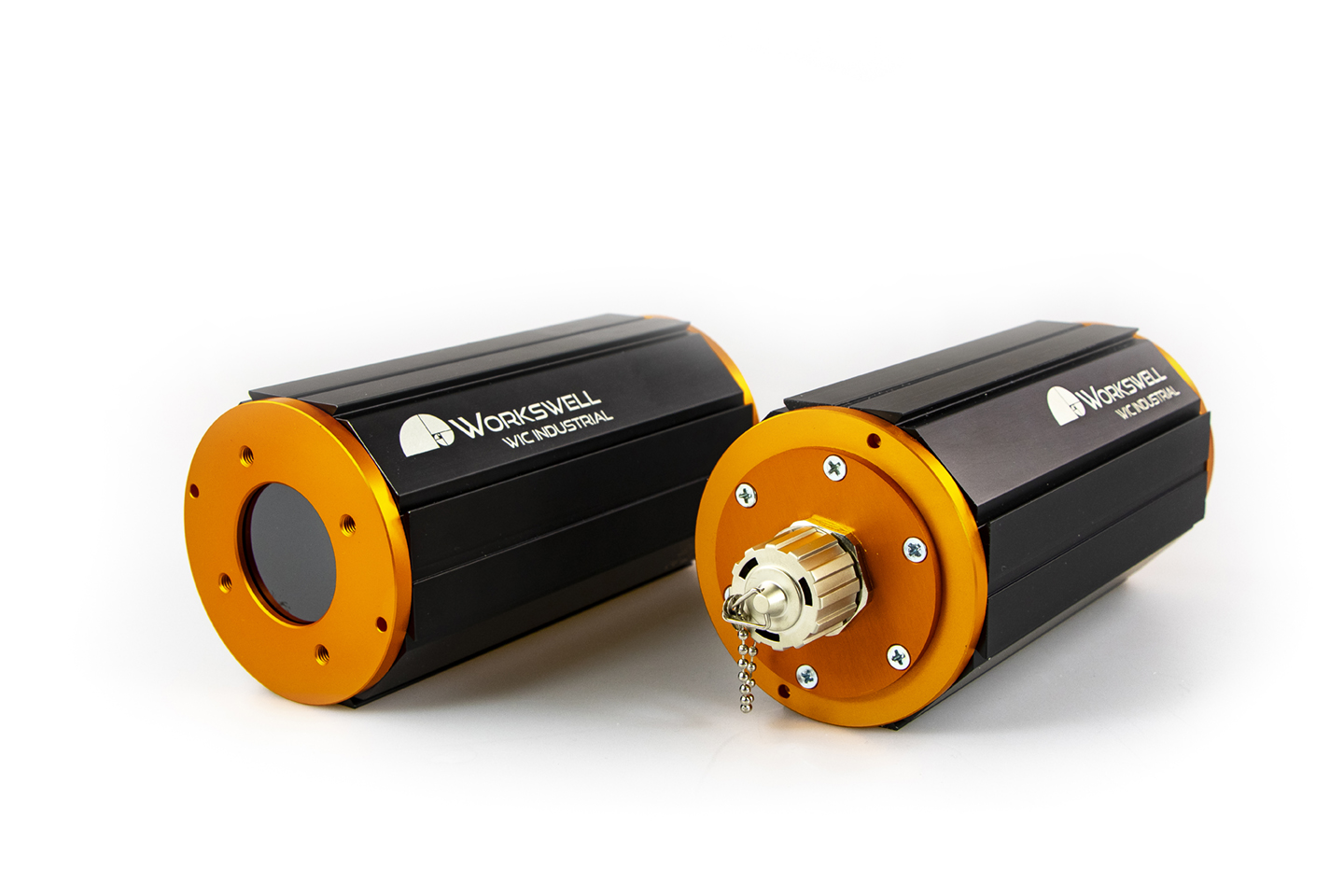

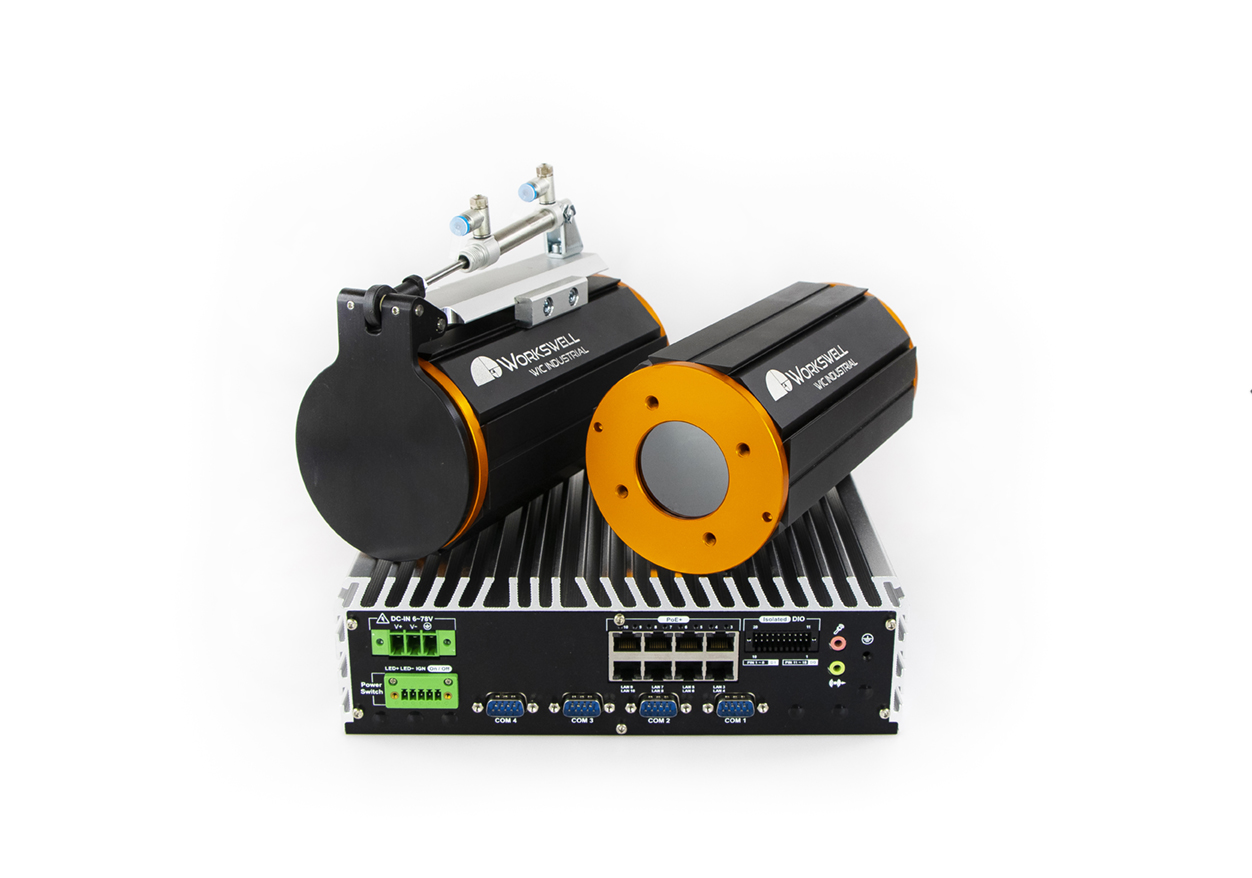

WIC Industrial Thermal Camera with IP67
Model No :
WIC Industrial
Part Code :
WIC-SC-336-SGW/ FGW/ DFGW (9Hz/ 30Hz/60Hz) WIC-SC-640-SGW/ FGW (9Hz/ 30Hz)

Overview

Automation: WIC Industrial thermal camera is designed and manufacured for easy and user friendly plug and play integration for all process control and quality control applications. WIC industrial is powered via PoE and ethernet cable and is fully compatible with gigabit ethernet protocol. This industrial thermal camera can be directly connected to Workswell Coreplayer desktop software which automatically detects camera, configures an address and ensure a camera connection.Images can be shown in different color pallets with interactive side bar and mesurement tools

Features
-Fully radiometric and calibrated sensor
-Automatic cooling and heating
-Harsh conditions -50 °C to 200 °C (-58 °F to 392 °F)
-30mK sensitivity in standard
-Sensor resolution 640 px and 336 px
-ThermoInspector and Hoof Inspector compatible
-IP66/IP67 protection rating
-Linux x86 and Windows SDK in the package

Major Applications
-Temperature monitoring during laser welding of plastics
-Surface temperature monitoring during aluminium soldering
-Surface temperature check when gluing laminate

Technical Specifications
-Resolution: 640 x 512 pixels or 336 x 256 pixels
-Framerate: 60Hz, 30 Hz or <9 Hz available
-Spectral Range: 7.5 – 13.5 µm
-Available Lenses: 6.8mm, 9mm, 13mm, 19mm
-Accuracy: ±2 % or ±2 °C (±3.6 °F)
-Temperature sensitivity =0.03°C (30mK) @ 30°C

General Specifications
-Temperature ranges:
-25 °C to +150 °C (-13 °F to 302 °F)
-40 °C °C to +550 °C (-40 °F to 1 022 °F)
·optional temperature range +50 – 1 000 °C (122 °F to 1 832 °F)
·optional temperature range +400 – 1 500 °C (752 °F to 2 732 °F)
-Input Supply Voltage: Power over Ethernet 48V type
-Calibration: Radiometric and calibrated
-Detector Type: Uncooled VOx microbolometer
-Ethernet version: Gigabit Ethernet, RJ-45 connector
