Workswell

TIS 640 Firetruck Mounted Infrared System

Model No :

TIS 640

Part Code :

Overview

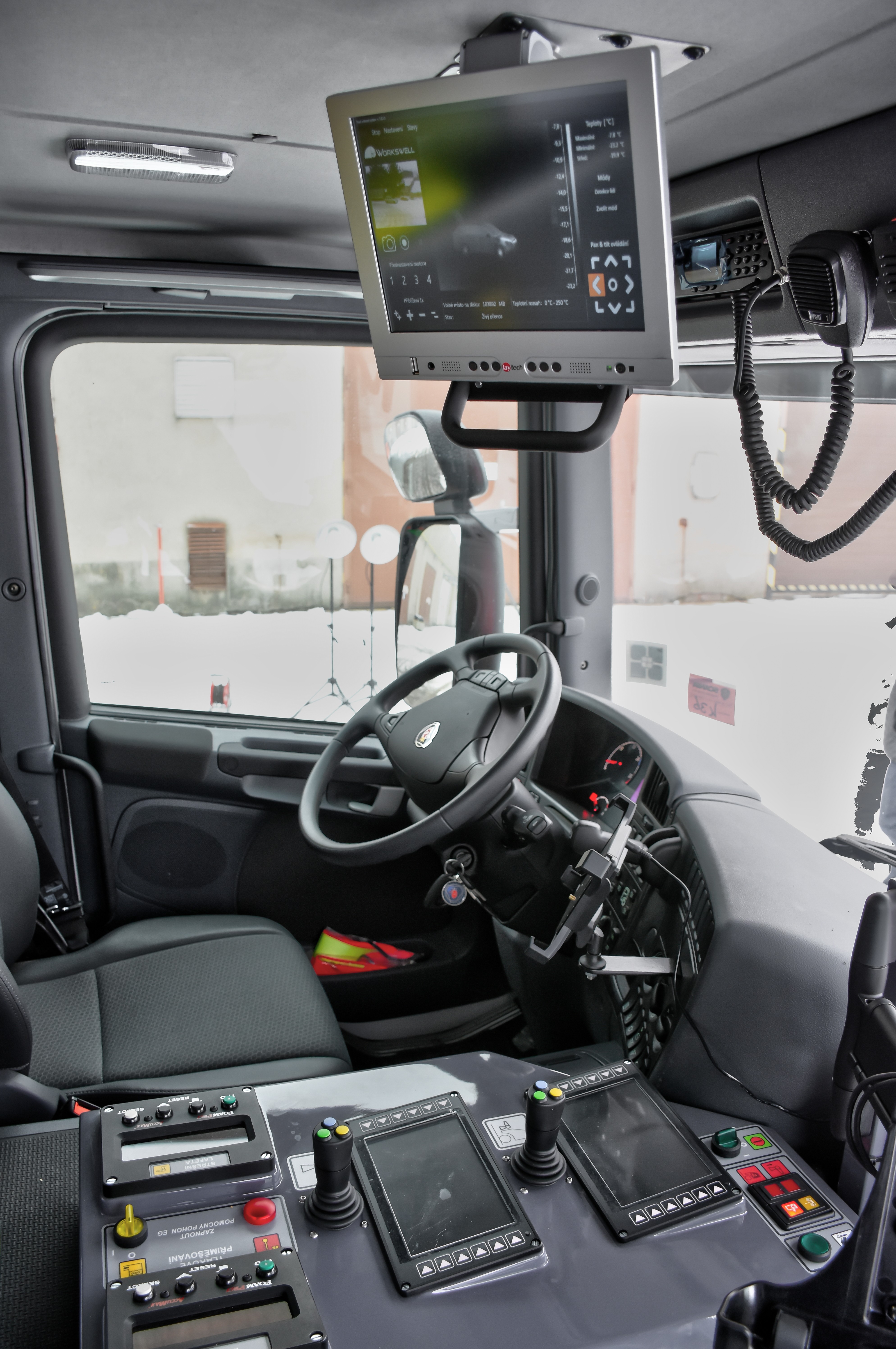

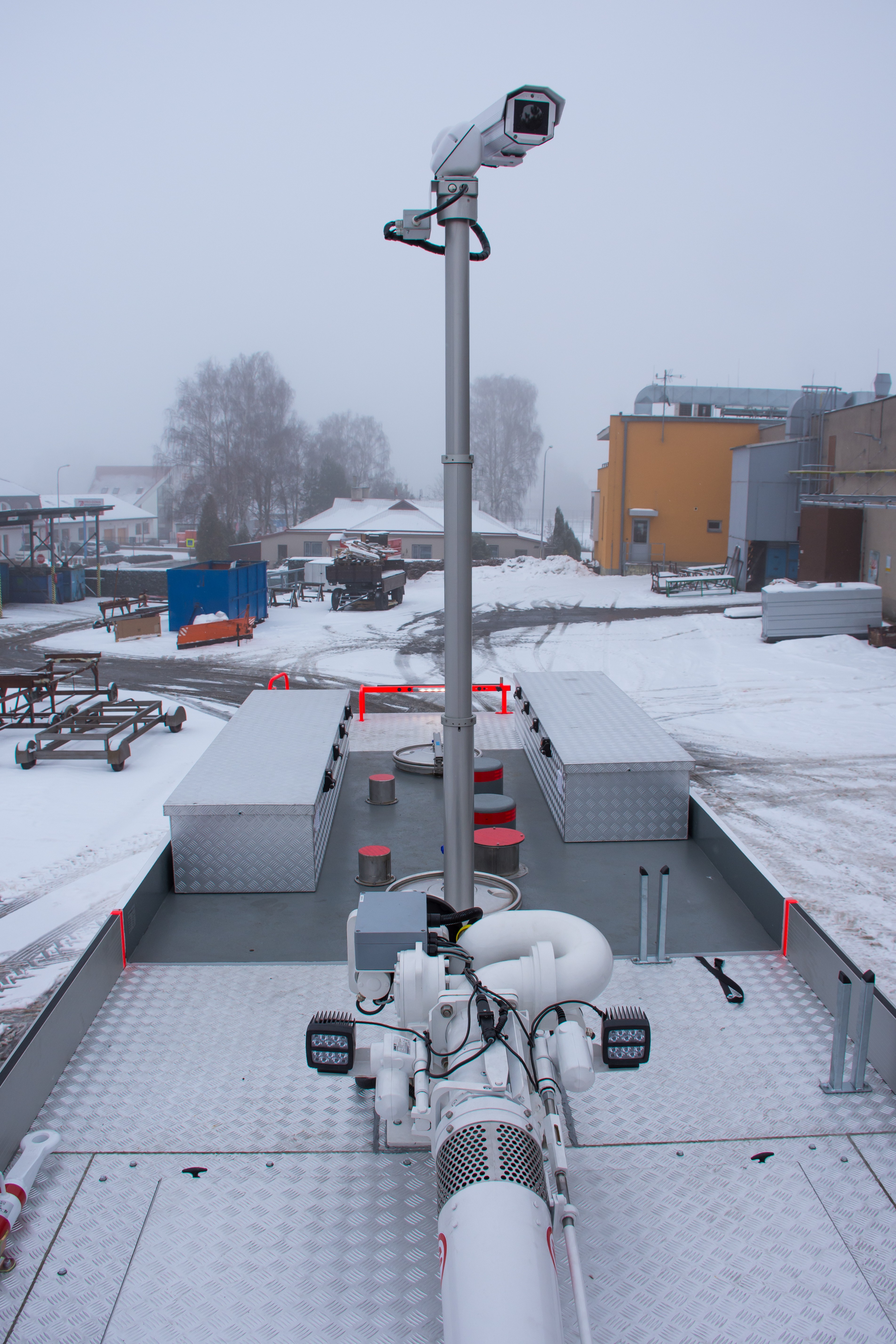

Fire Prevention: Truck Infrared System(TIS) is developed mainly for fire crews to make their work more secure and faster.This complex thermal imaging system is designed for use on firefighting vehicles.TIS is consist of Thermal Imaging Camera can be controlled by PTZ system motors.This thermal imaging camera can be controlled remotely directly from vehicle cabin or through remote connection via tablet.
TIS is suitable for big fire trucks with large water tank and chemical tank for chemical extinguishing.

Features

-Thermal camera controlled by PTZ system motors
-Remote control of the TIS - 640
-Digital visible camera included
-Protective cover (dustproof, watertight)
-High temperature ranges up to 1000°C

Major Applications

-Firefighting operations

Technical Specifications

-Thermal Camera Resolution: 640 x 512 pixels
-Temperature sensitivity: 0.05 °C (50 mK)
-Accuracy: ±2 % or ±2 °C (For high temperature ranges)
-Spectral range: 7.5 – 13.5 µm
-Digital Visible Camera Resolution: 800 x 600 pixels
-Temperature ranges :
Low: 0 °C to +250 °C
High: +50°C to +1000°C

General Specifications

-Storage: Internal 128 GB – up to 2 hours of radiometric sequences
-Operating temperature:
-20°C to +60°C (operating temperature of the protective cover)
-IP protection(Encapsulation): IP 67 (dustproof and watertight)

Catalogue

https://www.elmack.co.in/images/downloads/Catalogue/TIS 640.pdf

Manufacturing details:

https://workswell-thermal-camera.com/workswell-tis-640/
