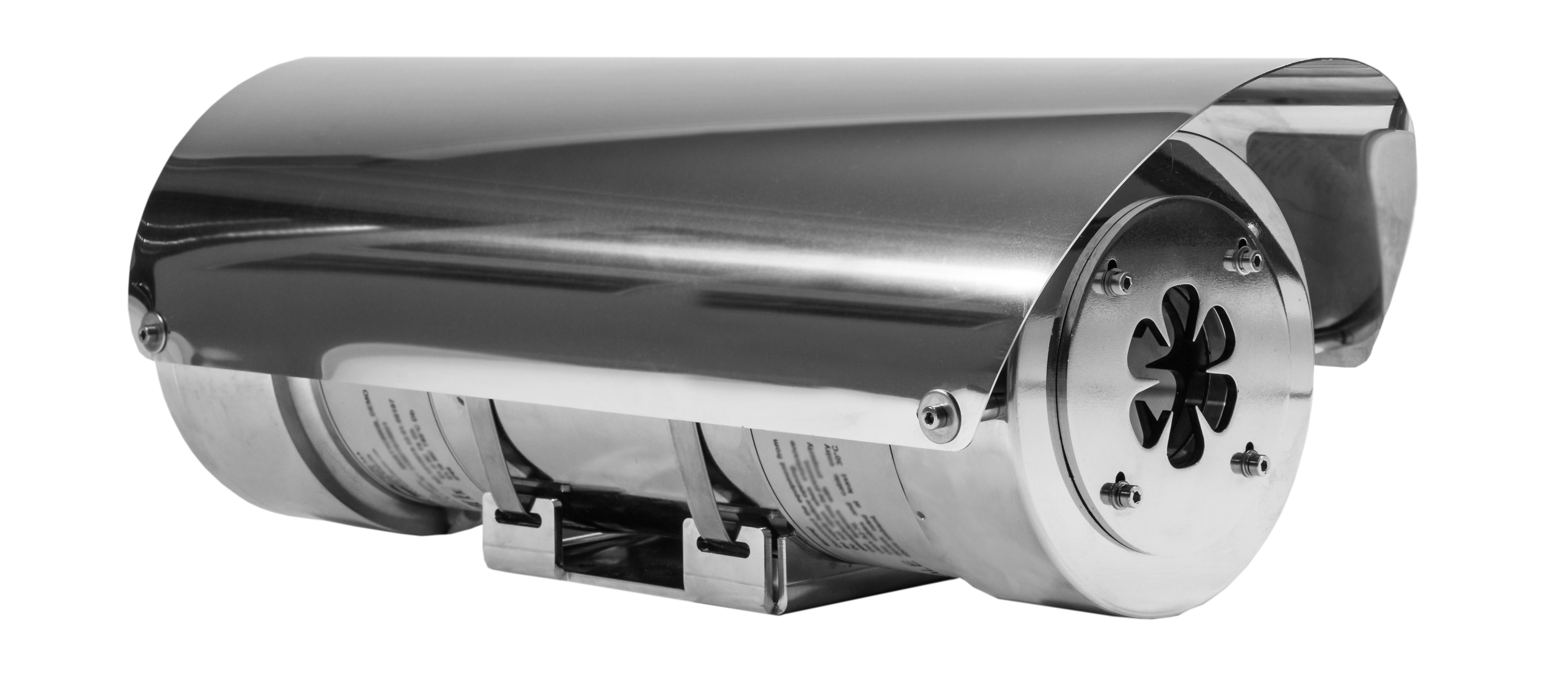

SAFETIS EX-proof Detect Flare-Ups Before The Fire Starts

Model No :

SAFETIS EX-proof

Part Code :

WSE-336-S/F(9Hz, 30Hz)WSE-640-S (9Hz)

Overview

Fire Prevention: Workswell SAFETIS EX-proof is designed for fire detection and protection.Workswell has developed unique all-in-one system with built-in analysis, continuous measurement, visualization, control functions and alarming.It can be used in waste bunkers, many types of warehouses, electrical substations, landfills, photovoltaic plants etc where 24/7 protection is needed.

Features

-SAFETIS Control unit for advanced visualization
-Fully calibrated up to 550 °C (optional +1 500 °C)
-Built-in web-server for control and stream
-High-protection heated outdoor housing IP67
-Up to 7 digital alarm outputs in the camera
-Resolution 336 px or 640 px detector up to 30 Hz
-Advanced analytics, recording and alarming
-Ethernet TCP/IP Process communication

Major Applications

-Suitable for ATEX environment
-Depots and incineration plants and hazardous waste warehouses
-Conveyor belts
-Chemical and industrial plants
-Cement plants
-Monitoring of perimeters

Technical Specifications

-Resolution: 336 x 256 pixels, 640 x 512 pixels
-Image frequency 9 Hz or 30 Hz
-Temperature sensitivity: 0.05 °C (50 mK)
-Spectral range: 7.5 – 13.5 µm

General Specifications

-Temperature ranges:
-25 °C to +150 °C (-13 °F to +302 °F)
-40°C to +550 °C (-40 °F to +1022 °F)
-Optional extended temperature rang:
+50 °C to +1 000 °C (+122 °F to +1832 °F) (filter)
-Optional extended temperature range:
+400 °C to +1 500 °C (+752 °F to +2732 °F) (filter)
-Detector type: Uncooled VOx microbolometer
-Focus: Continuous manual (fixed focusable, min focus distance depends on len

Catalogue

https://www.elmack.co.in/images/downloads/Catalogue/safetis exproof.pdf

Manufacturing details:

https://workswell-thermal-camera.com/workswell-safetis-ex-proof-is-a-thermovision-specially-construc
