Testo

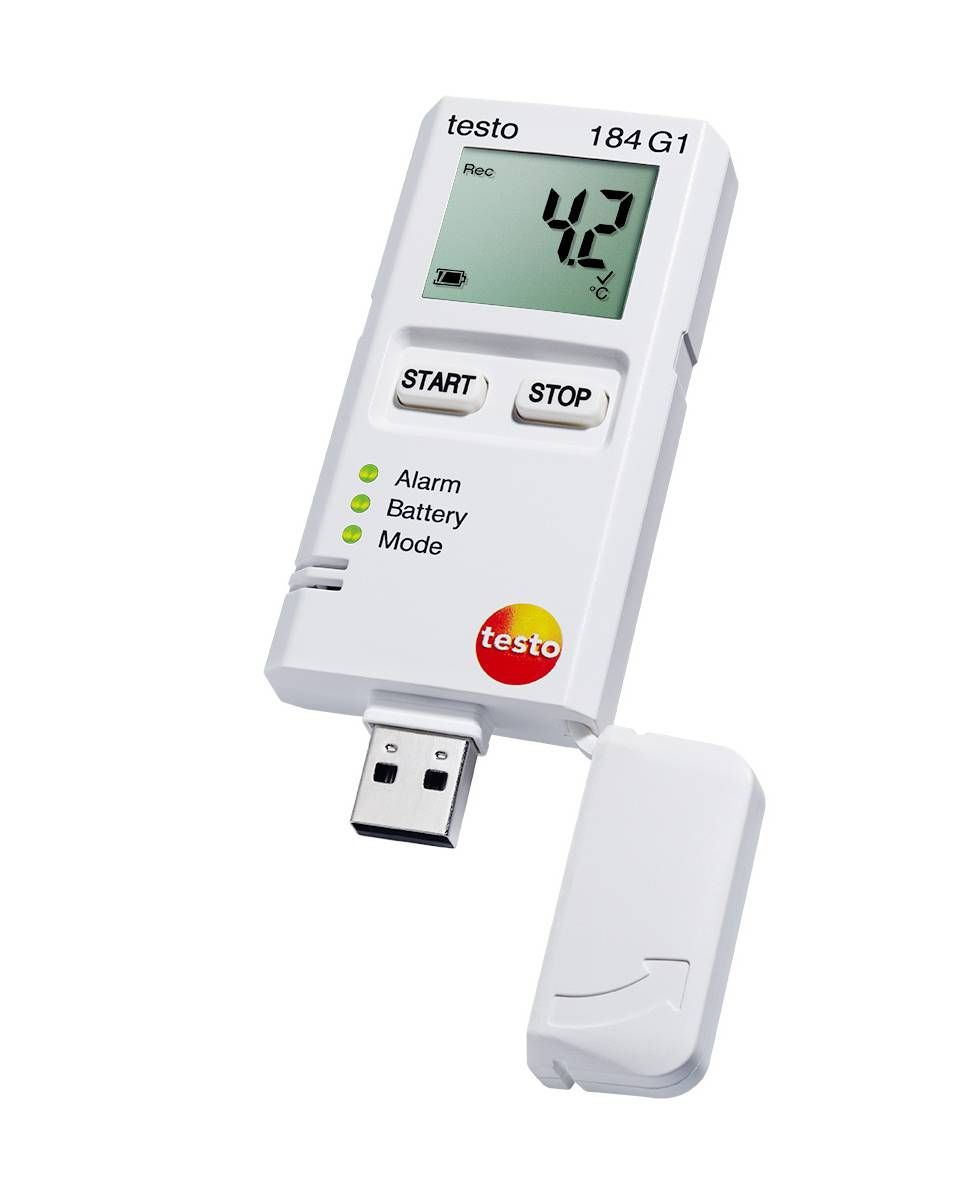

Testo 184 G1 - Transport Logger
Model No :
Testo 184 G1
Part Code :
0572 1846

Overview

With the data loggers testo 184 G1 for shock, humidity and temperature, you can now monitor the transport of sensitive products such as electronics , art, pharmaceuticals or foods over an unlimited operating time.
At their destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 G1: Configuration file, instruction manual and PDF report of your recorded data.

The measurement value store of the data logger testo 184 G1 for shock has a capacity of 1000 measurement values, for humidity and temperature 64000 measurement values. The measurement rate is freely selectable from 1 min to 24 h. The battery has a life of 120 days. The temperature data logger testo 184 G1 is supplied by a standard battery which can be exchanged by the user.

testo 184 G1 is compliant with GxP, 21 CFR Part 11 and HACCP. Testo AG is an ISO 9001:2008-certified company, and ensures the adherence to the norms through internal audits as well as accredited external audits.

Features
- Unlimited operating time
- All in one data logger: PDF measurement data, configuration file and instruction manual
- Immediate creation of a PDF report directly after connection to a computer
- Transport monitoring in compliance with GxP, 21 CFR Part 11 and HACCP

Major Applications
- Monitoring and documentation of temperature, humidity and shock in food logistics
- Monitoring and documentation of temperature, humidity and shock in pharmaceutical logistics

Technical Specifications
- Temperature : NTC
• Measuring range : -20 to +70 °C
- Accuracy : ±0.5 °C (0 to +70 °C) , ±0.8 °C (-20 to +0 °C)
- Humidity - Capacitive
• Measuring range : 0 to 100 %RH
- Accuracy : ±2 %RH at +25 °C (20 to 80 %RH),±3 %RH at +25 °C (< 20 and > 80 %RH),±1 %rF Hysterese, ±1 %rF/year Drift
- Shock
• Measuring range : 0 to 27 g, 0 to 265 m/s²
- Accuracy : ±(0.1 g + 5 % of mv), ±1 / 1 / 1 m/s²
- Resolution : 0.1 g, 1 m/s²

General Specifications
- Operating temperature : -20 to +70 °C
- Protection class : IP30
- System requirements : Adobe® Acrobat Reader
- Standards : CE 2014/30/EU; DIN EN 61326-1:2013; DIN EN 50581:2013; 21 CFR Part 11; HACCP International
- Interface : USB; NFC
- Memory : 64,000 measurement values (temperature and humidity); 1,000 measurement values (shock)
- Storage temperature : -55 to +70 °C
